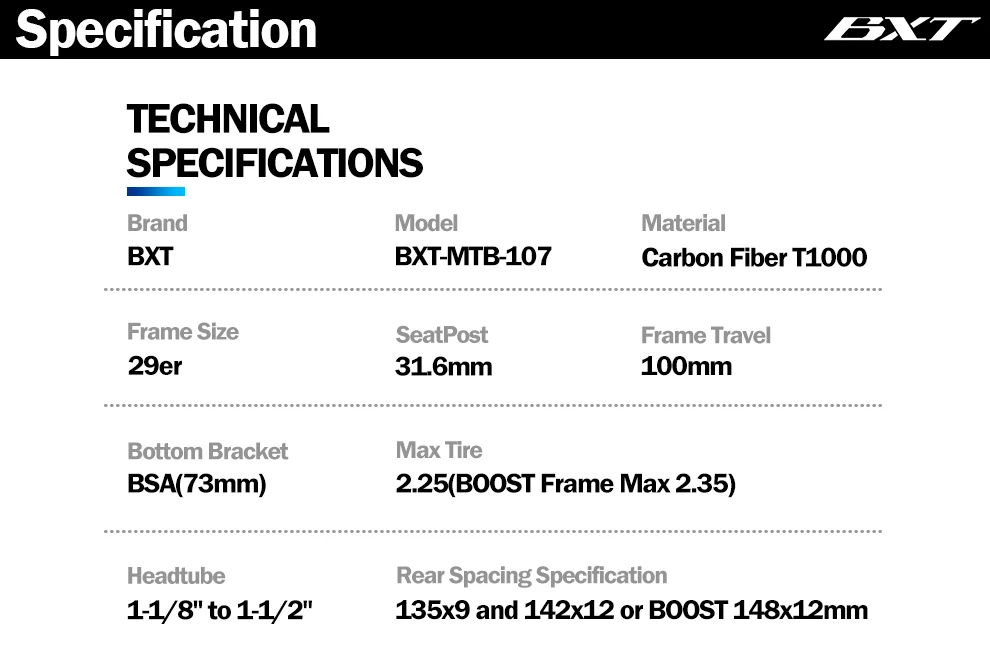

Specifications
| Hign-concerned Chemical | None |
Surface Processing Mode
|
Matte/Gloss |
| is_customized | Yes | Model Number | BXT-MTB-107 |

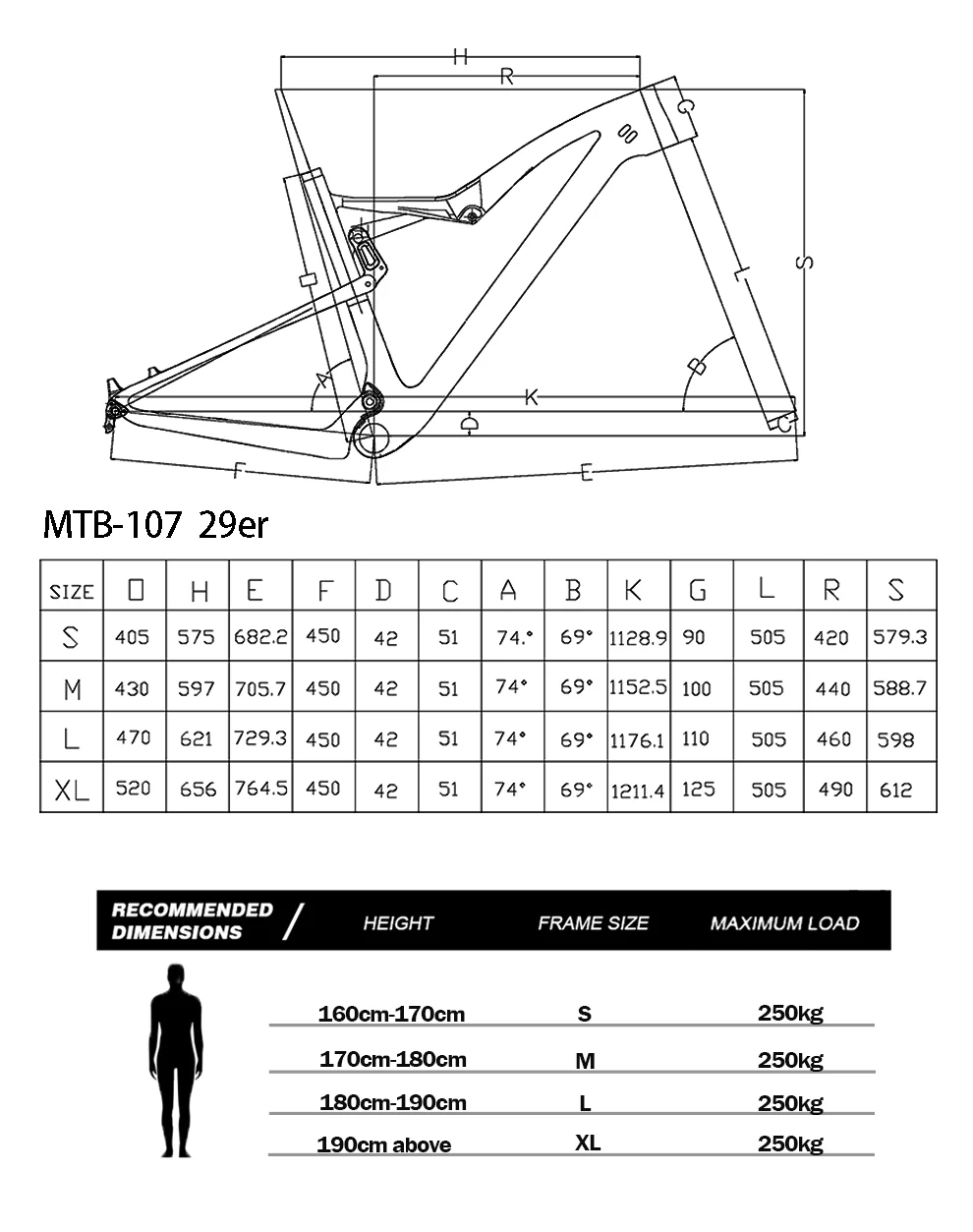

| Use | Cruisers,Mountain Bikes,suspension frame | Weight | 2185.5g±100g(for M size) |
| Foldable | No |
Material
|
Carbon Fibre |
| Brand Name | BXT | Origin | Mainland China |
| Type |

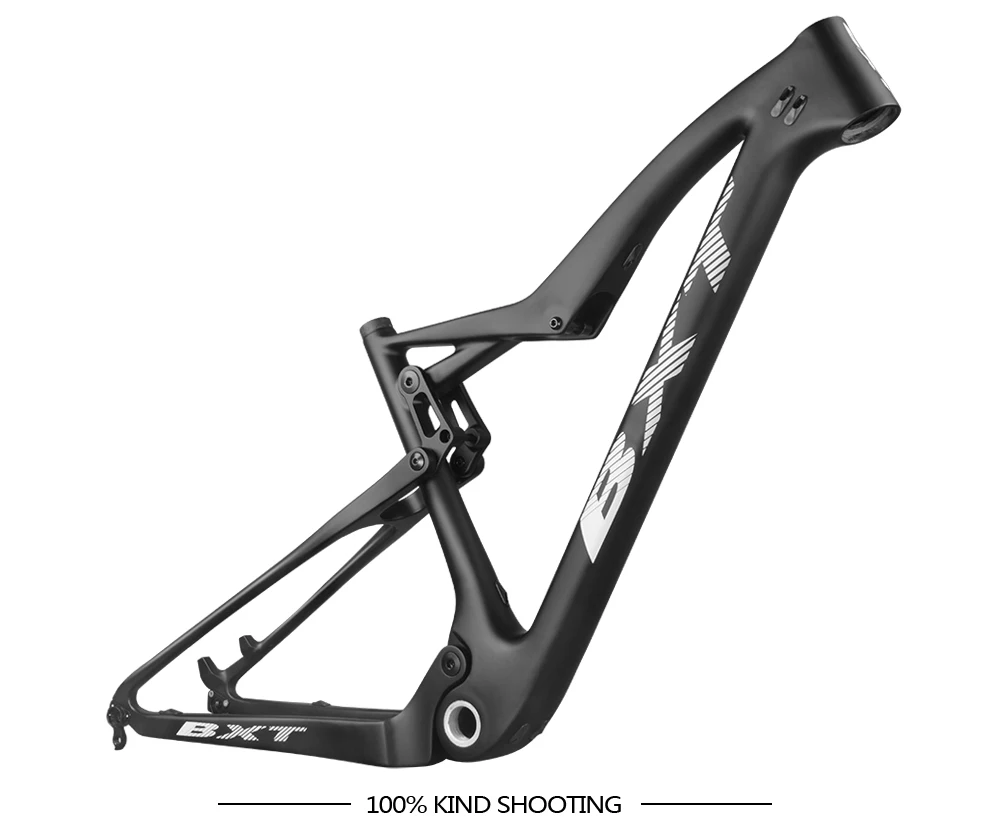

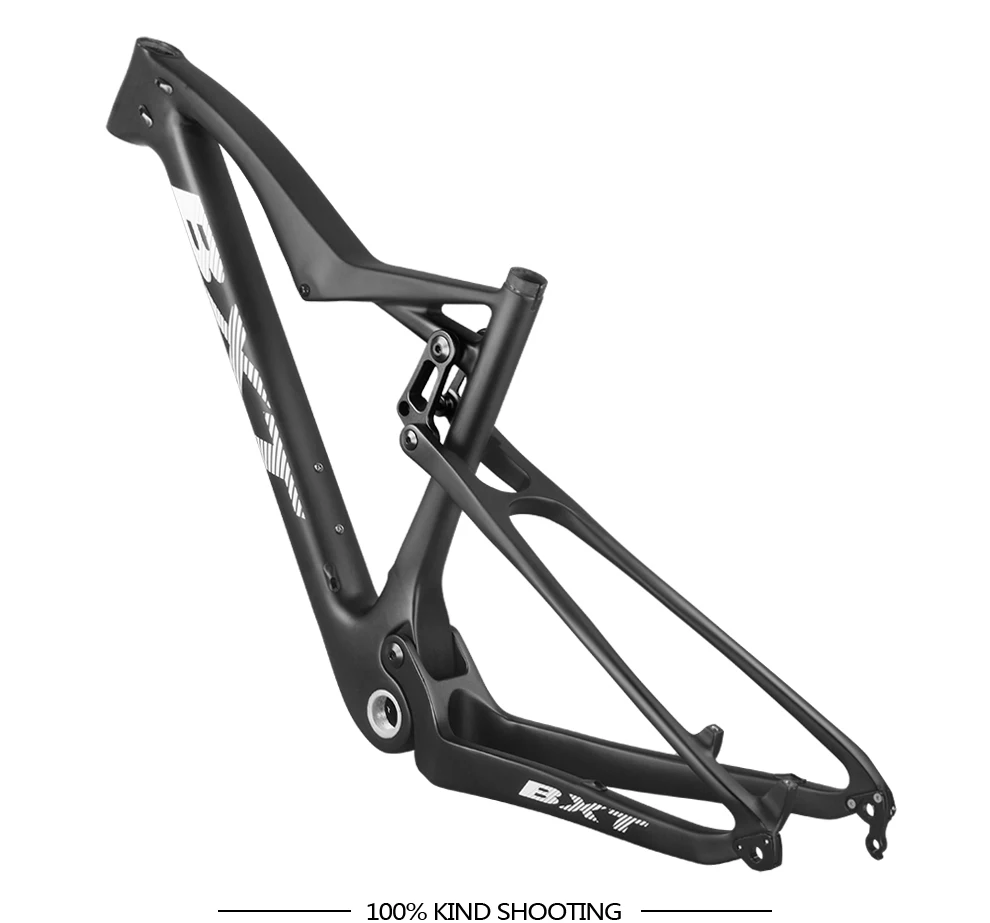

XC Full Suspension Carbon Frame
|
Material | T1000 Carbon Fiber |

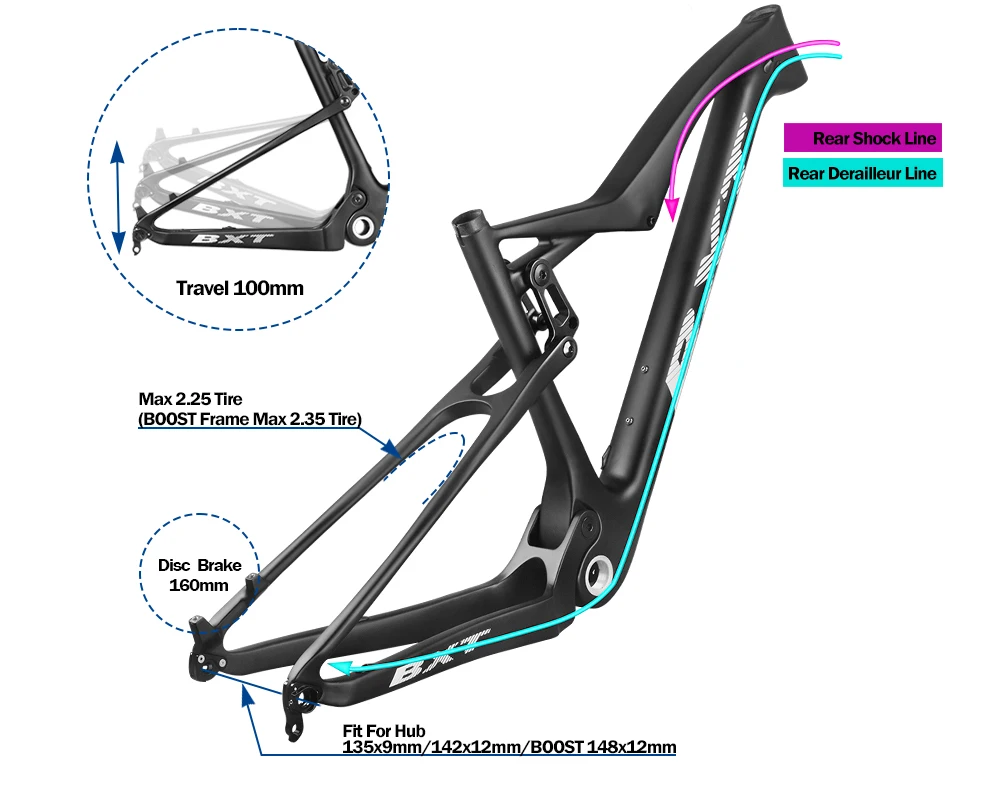

| Frame Travel |
100mm
|

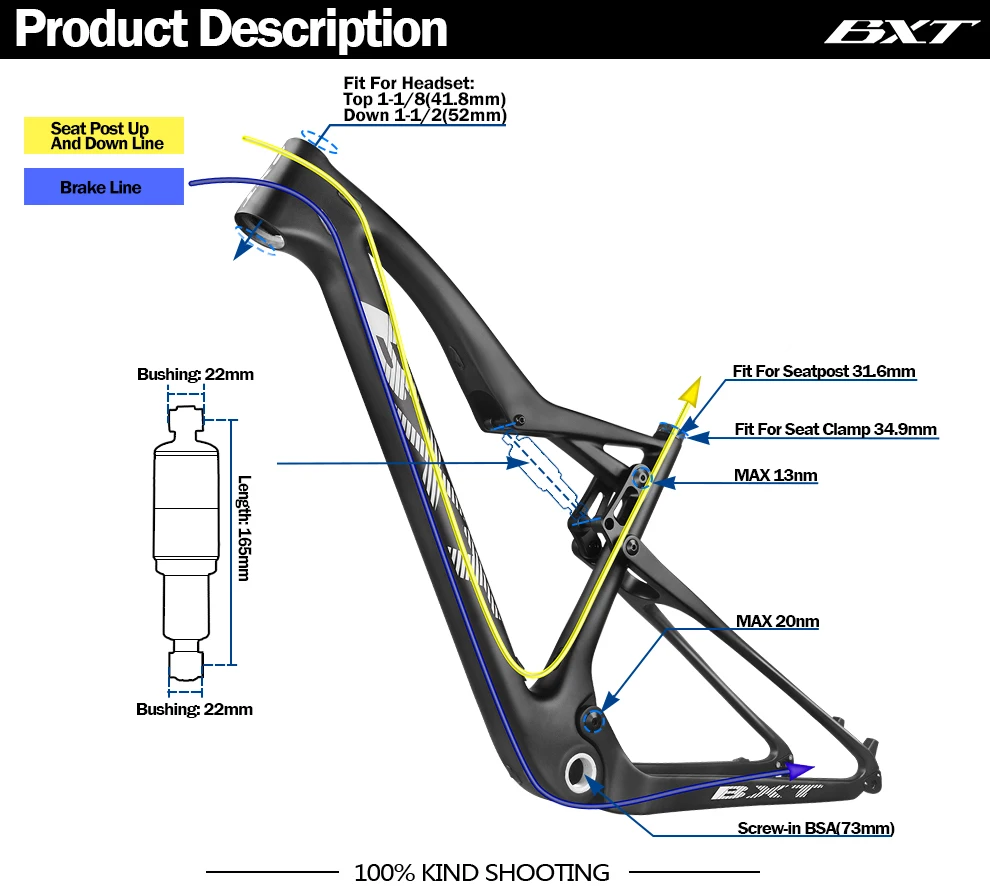

Fit for Rear Shock | Length 165mm,Bushing 22mm |
| Fit for Seat Clamp | 34.9mm |
Fit for Seat Post
|
31.6mm |
| Max load | 250kg |
Fit for Disc Brake
|
160mm |
|
Fit For Bottom Bracket
|
Screw-in BSA(73mm) | Recommend Fork Travel | 80-100mm |
|
Rear Spacing Specification
|
135x9 and 142x12 or Boost 148x12mm | Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
|
Fit for Tire
|
29er.Max 2.25Tire(BOOST Frame Max 2.35Tire) | Brake,Derailleur Cable | Frame Internal |
|

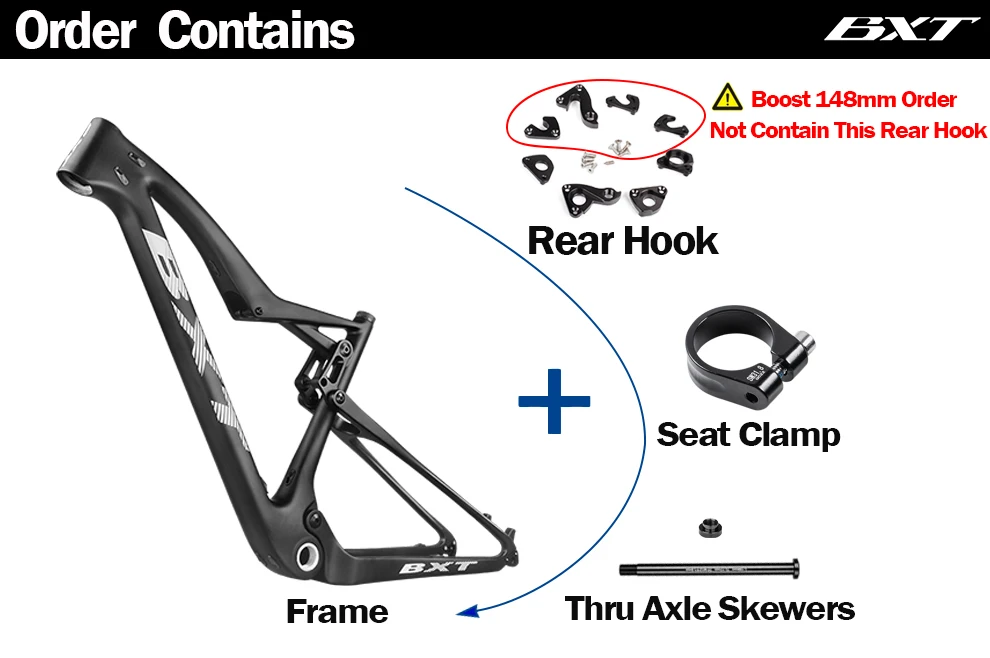

Order Contains
|
Frame+Thru Axle Quick+Seat Clamp+Rear Hook |
