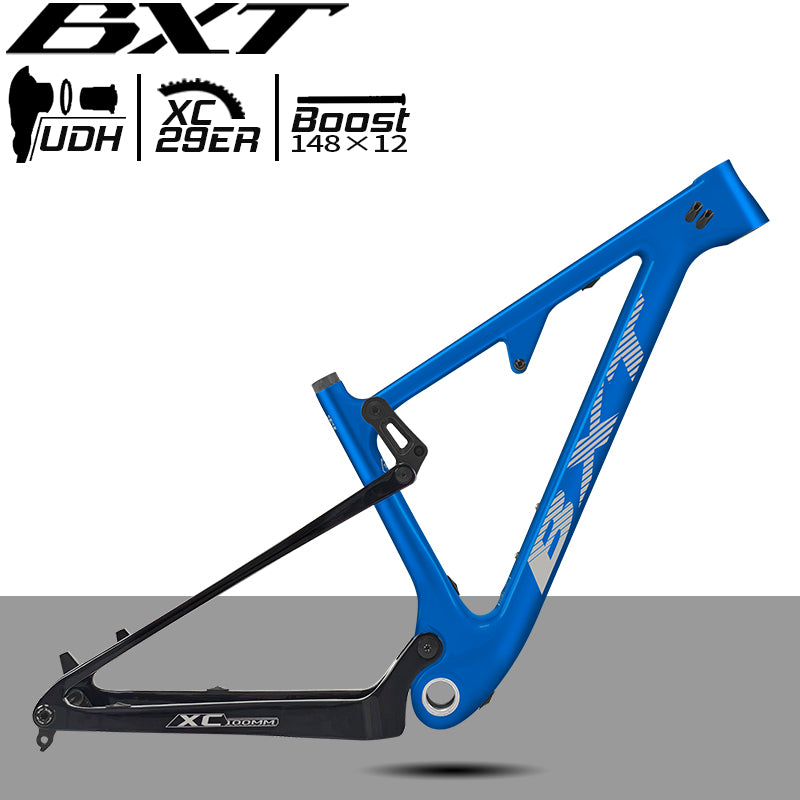

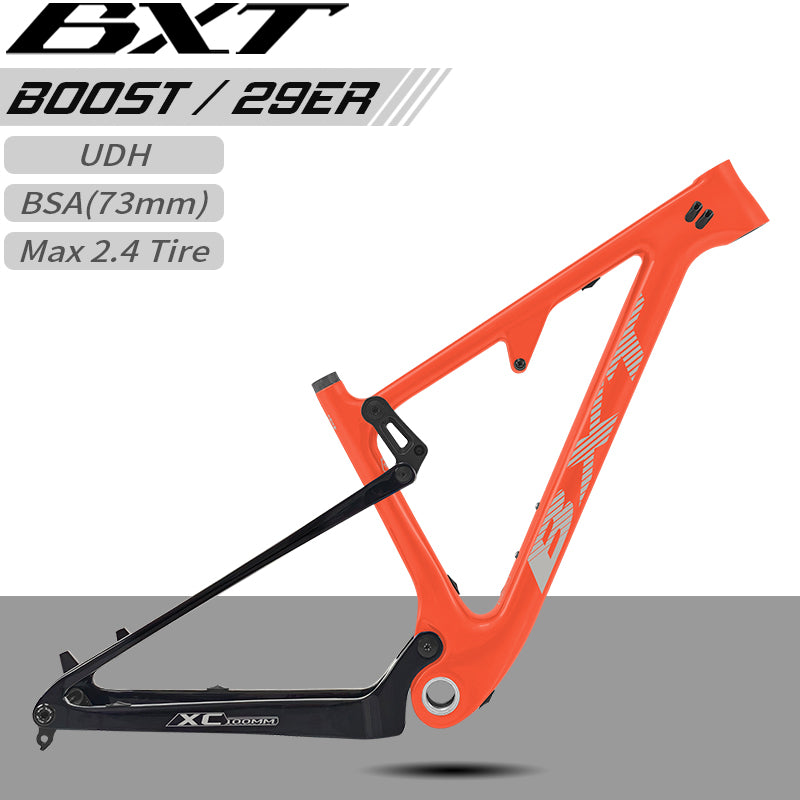

BXT-MTB-077(UDH) 29er Full Suspension Carbon Frame, Boost 148x12mm | 100mm Travel
Hello, friend
I am glad that you have entered the bxt official store to place an order
If you have any questions about BXT products, you can send me an email at any time
You can also contact me by adding wasapp+86 13428991904
1) About transportation and tariff issues:
If you are from the European Union:
We will choose DPD duty-free logistics channel to send the package for you
You do not need to pay tariffs, the tariffs are borne by us, and the package will be delivered to your door by DPD, and the transportation time is: 10-25 days to arrive
If you are a US buyer:
We will choose the US duty-free special line channel for you, you do not need to pay tariffs, you can receive the package, and the transportation time is 7-15 days to arrive
If you are from Europe and America ：
We will choose EMS/FED/UPS for you /DHL fast logistics channel sends parcels, the transportation time is: 5-7 days to arrive,
In order to reduce your tariffs, we will declare a low value for your parcel, the declared value ranges from 20-110USD, so you don’t have to worry about high tariffs
2) About the frame customization time:
Carbon fiber frames are customized products, and each buyer’s requirements are different, so we need to customize according to customer needs

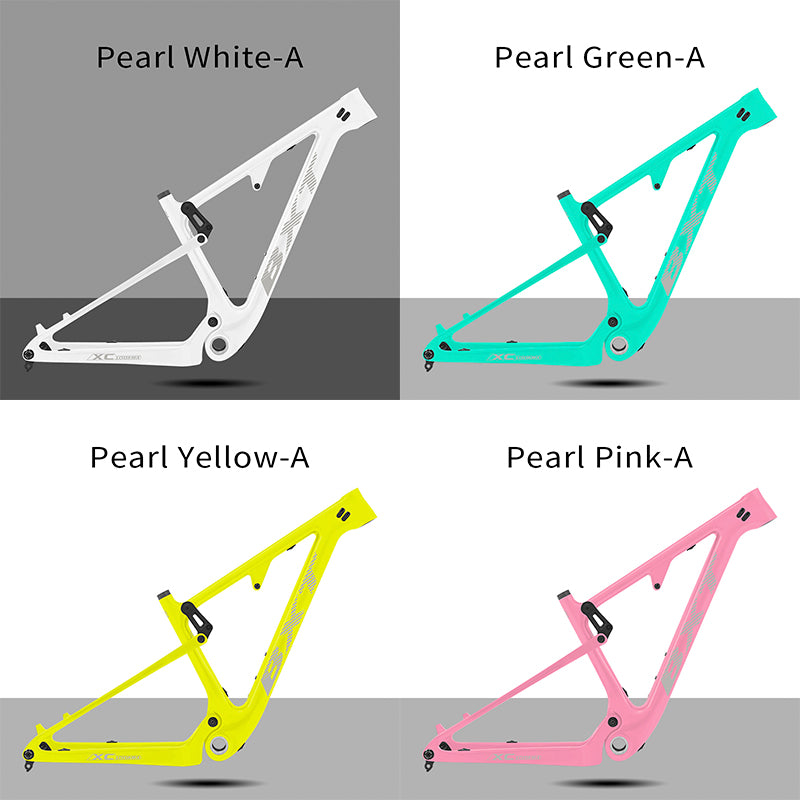

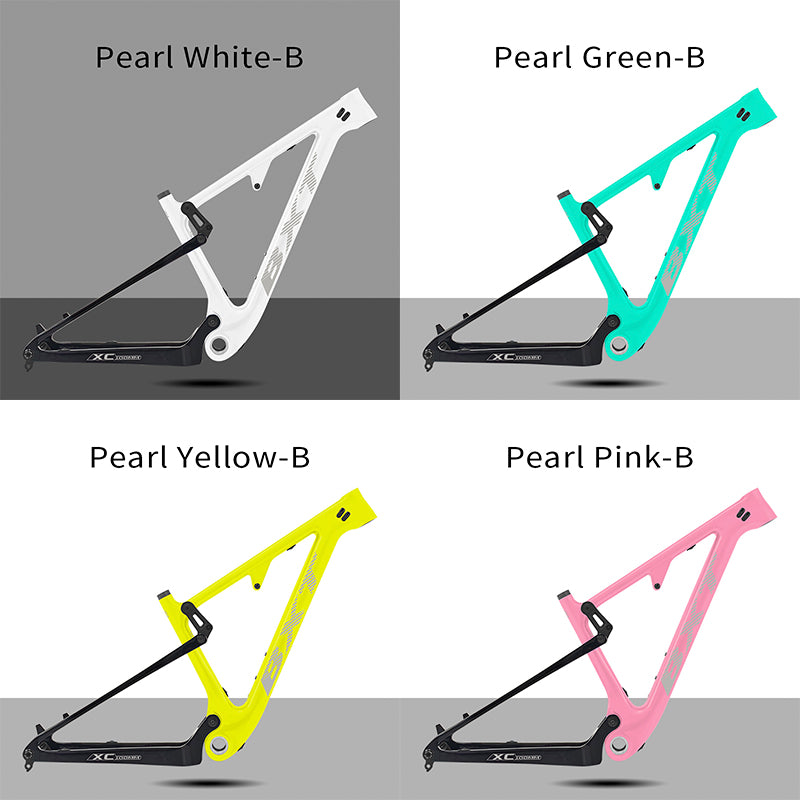

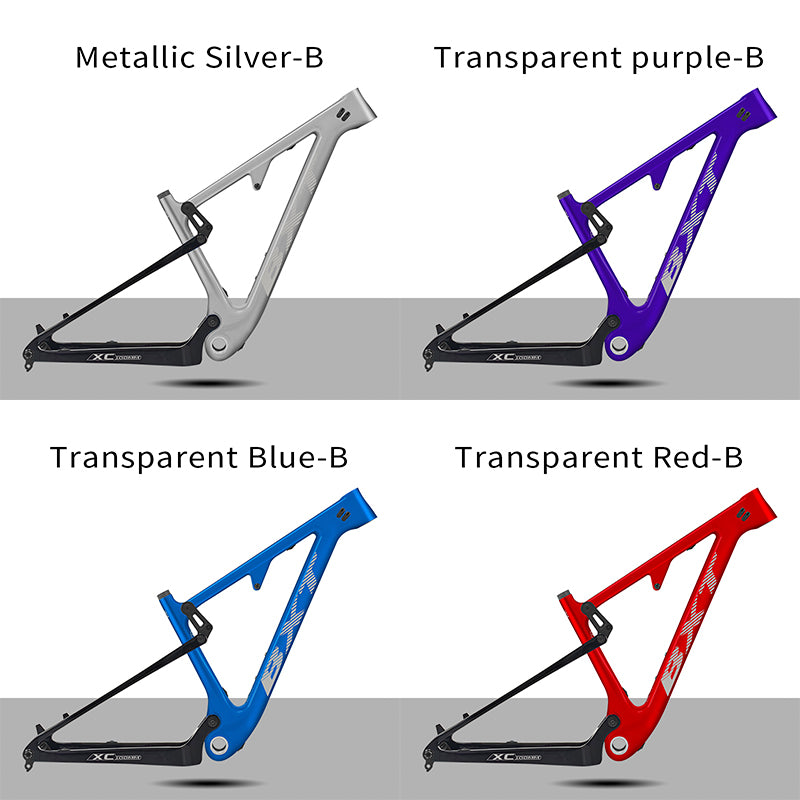

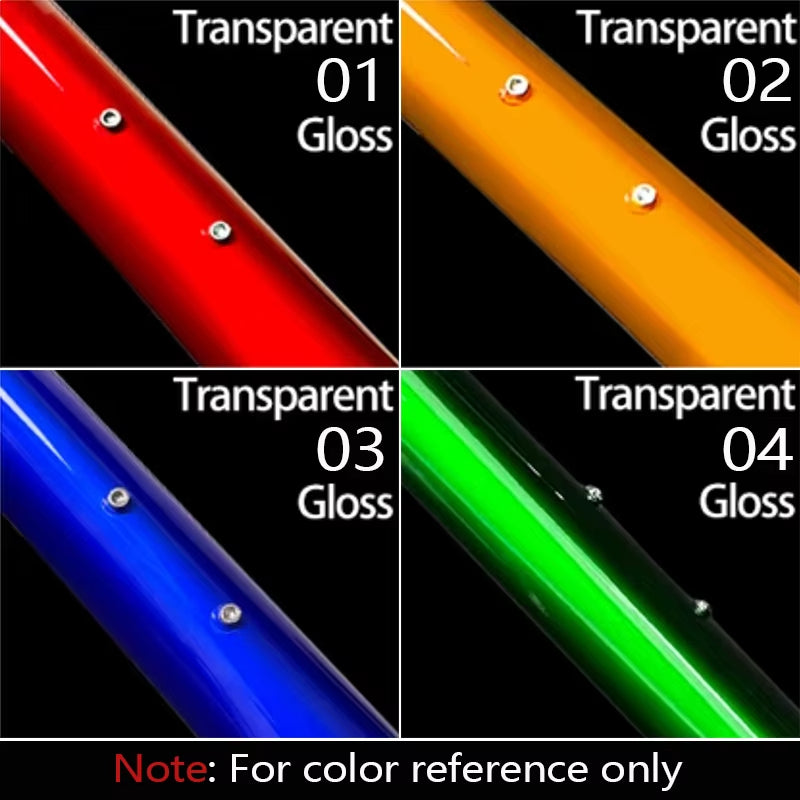

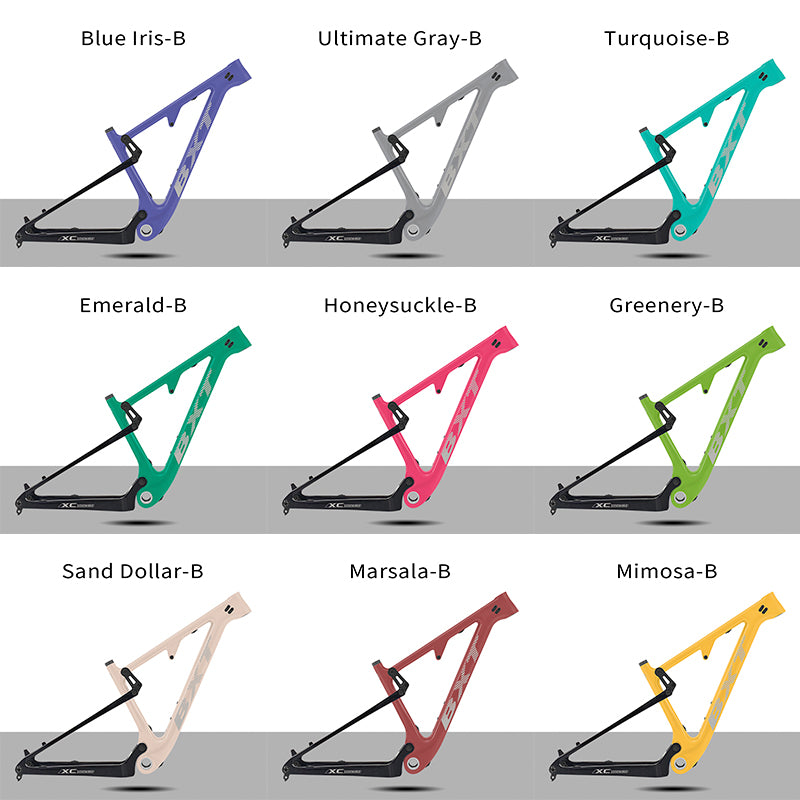

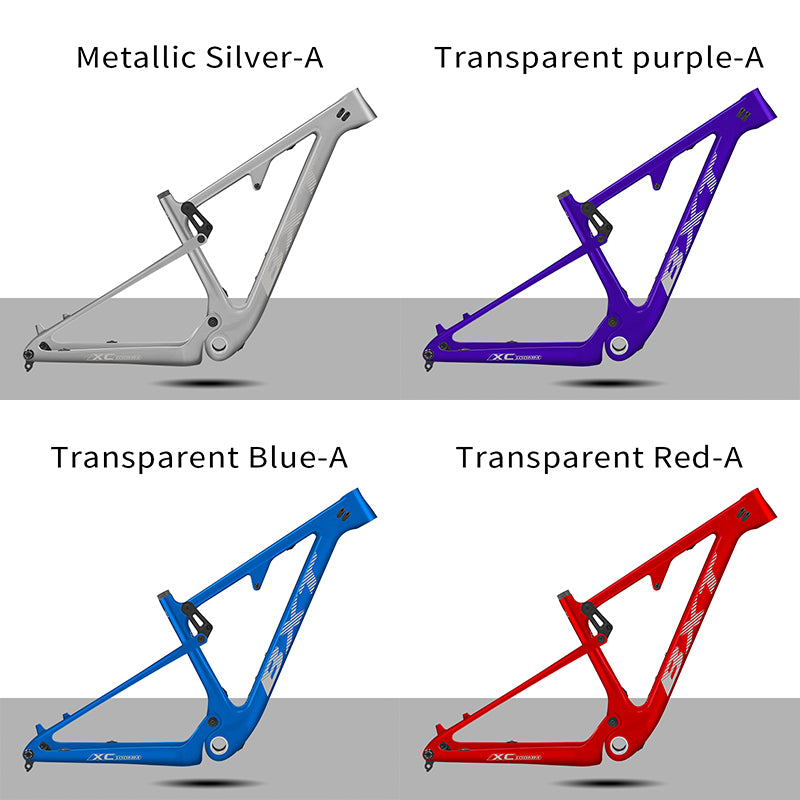

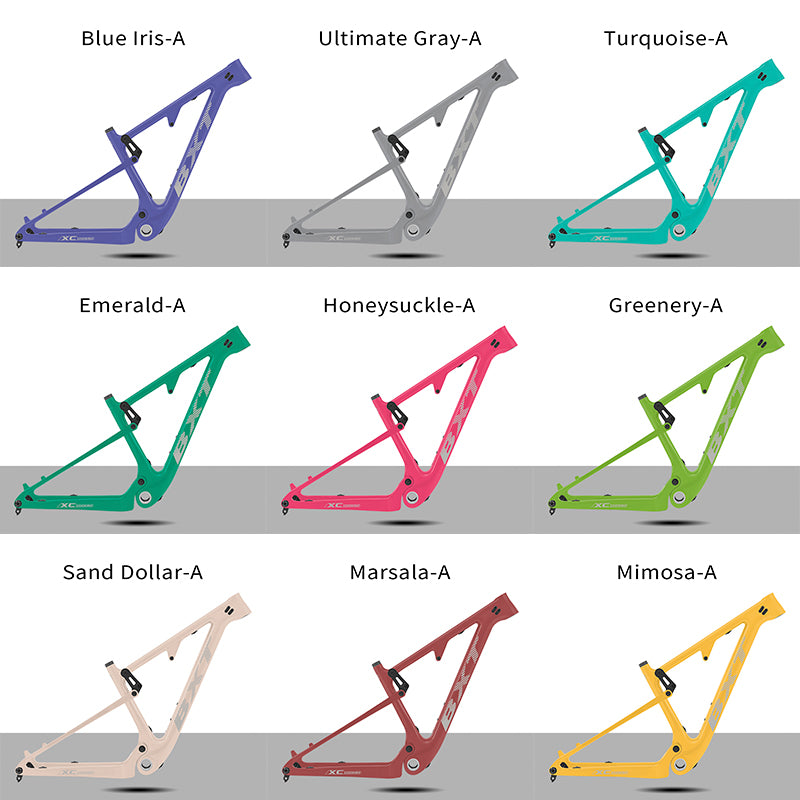

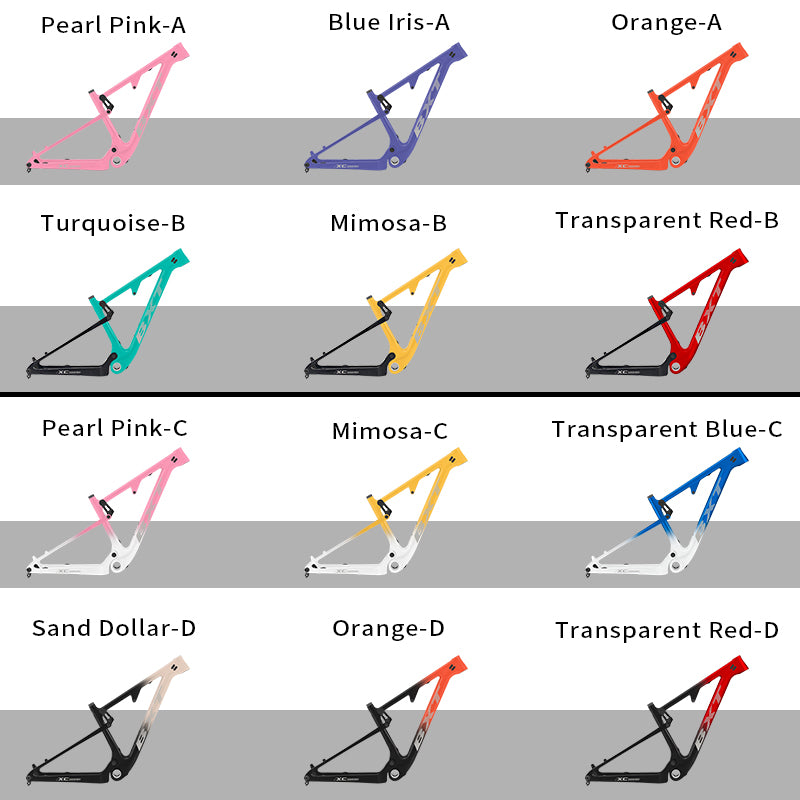

Customization time usually takes 10-25 days to ship, chameleon and ice cracks are special color customizations, usually the customization time will be longer, and it needs to be customized in combination with the climate.
Thank you for choosing BXT
Specifications
|
Hign-concerned Chemical
|

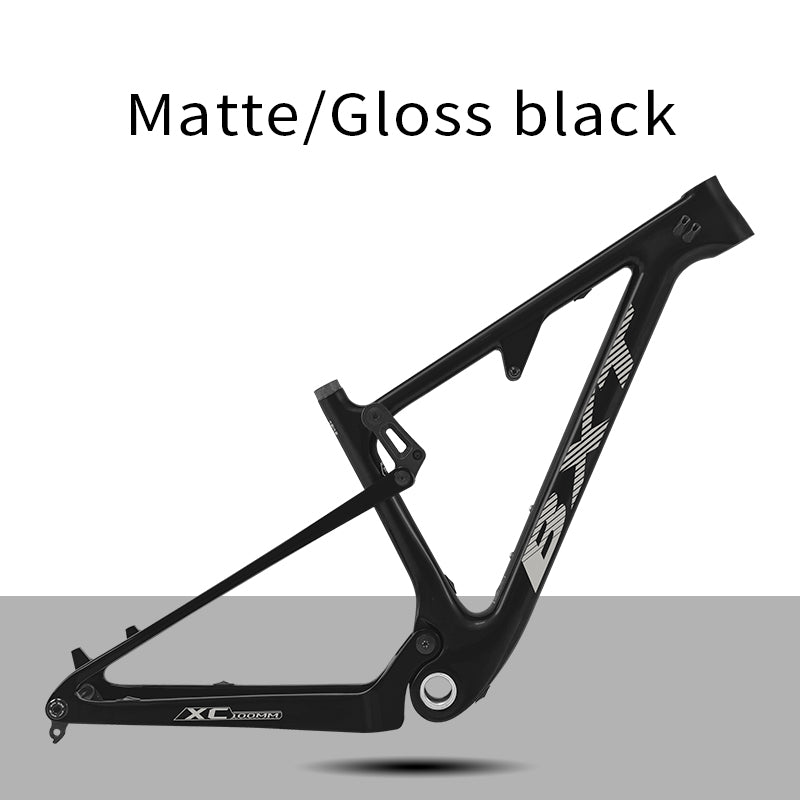

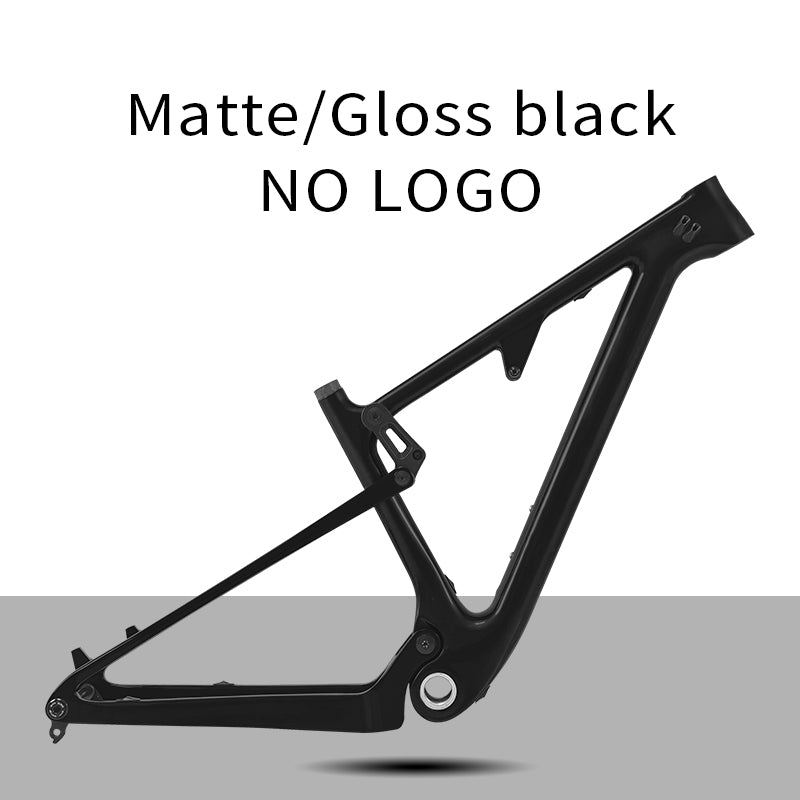

None | Surface Processing Mode | matte/gloss |
| is_customized | Yes | Model Number | BXT-MTB-077(UDH) |
| Use | Mountain Bikes,suspension frame | Weight | 2050g+-100g(for M size) |
| Foldable | No | Material | CARBON |
| Brand Name | BXT | Origin | Mainland China |
| Type | Carbon FullSuspension Frame 29er | Material | Carbon Fibre T700+T800 |
| Frame Travel | 100mm | Fit for Rear Shock | Length 165mm,Bushing 22mm |
| Fit for Seat Clamp | 34.9mm | Fit for Seat Post | 31.6mm |
| Max load | 250kg | Fit for Disc Brake | 160mm |
| Fit For Bottom Bracket | Screw-in BSA(73mm) | Recommend Fork Travel | 80-100mm |
| Rear Spacing Specification | 135x9 and 142x12 or Boost 148x12mm | Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit for Tire | 29er.Max 2.25Tire(BOOST Frame Max 2.35Tire) | Brake,Derailleur Cable | Frame Internal |

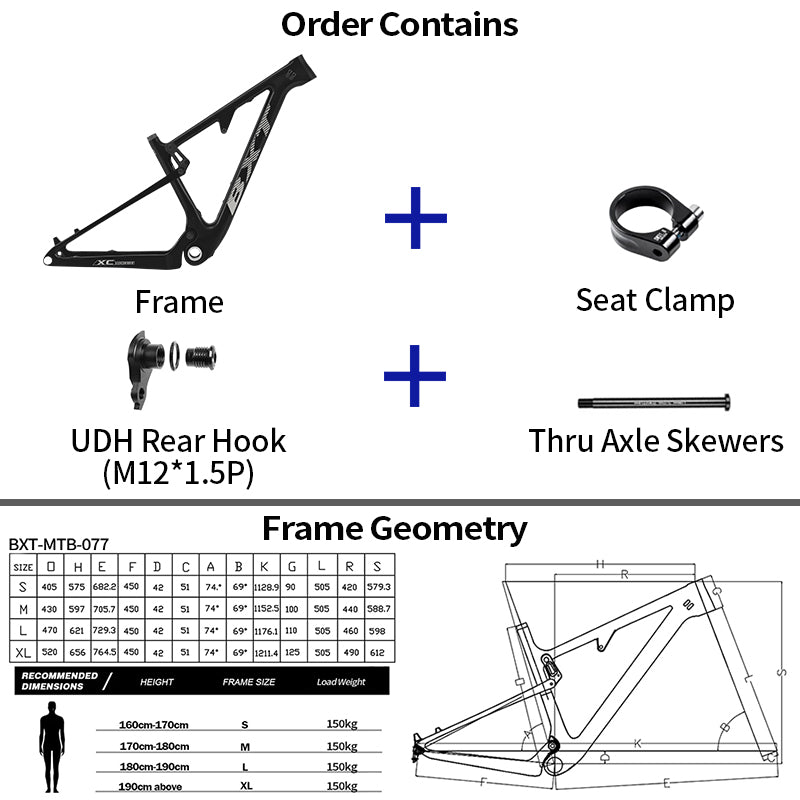

| Order Contains | Frame+Thru Axle Quick+Seat Clamp+Rear Hook | ||
Product Description
Type: Carbon FullSuspension MTB Frame 29er;
Material: T1000 Carbon Fiber;
Frame Travel: 100mm;

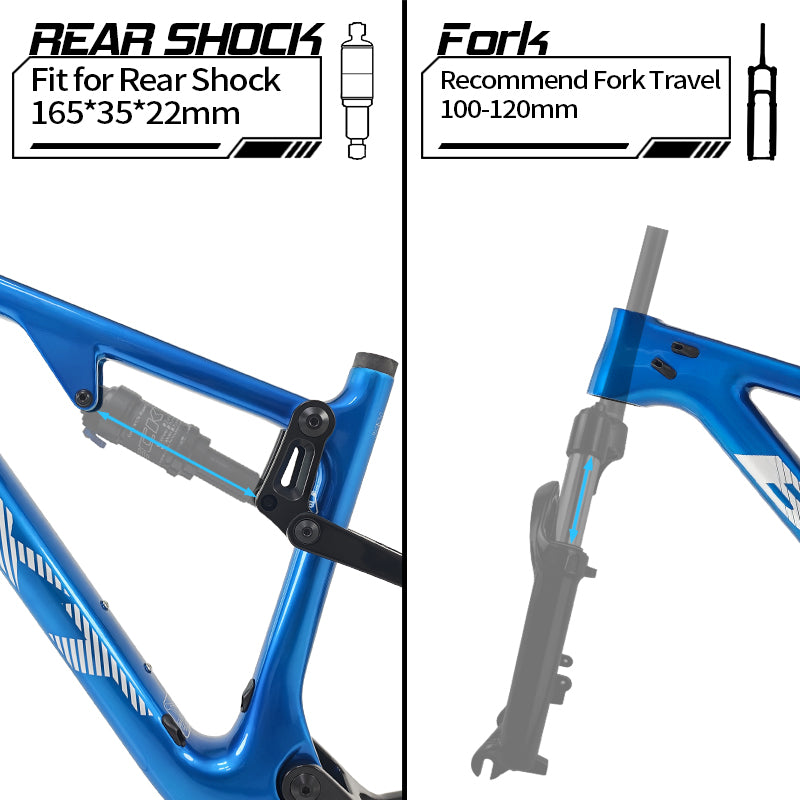

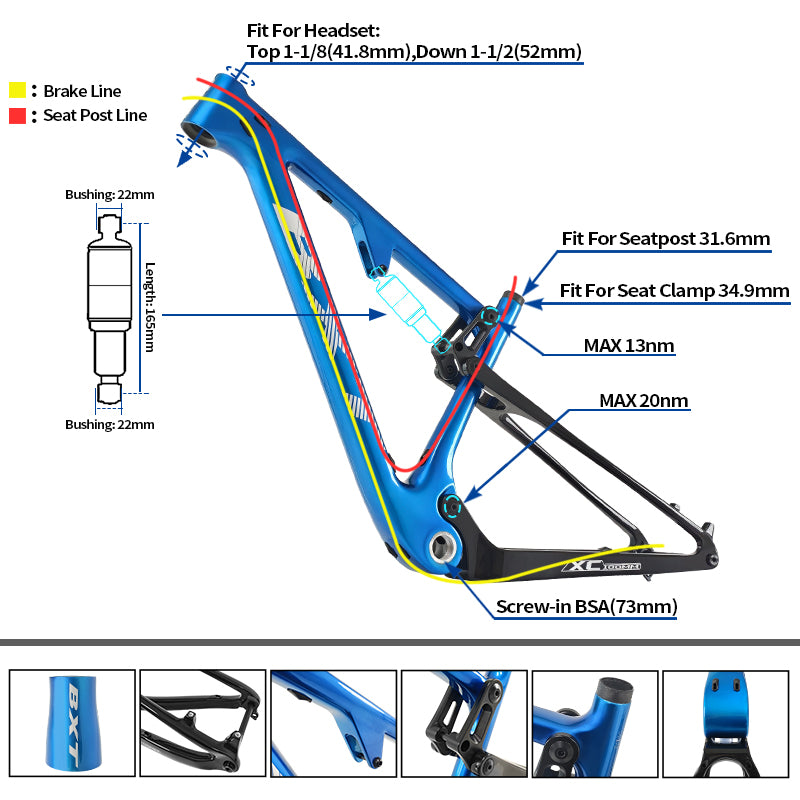

Fit for Rear Shock: Length 165mm,Bushing 22mm;

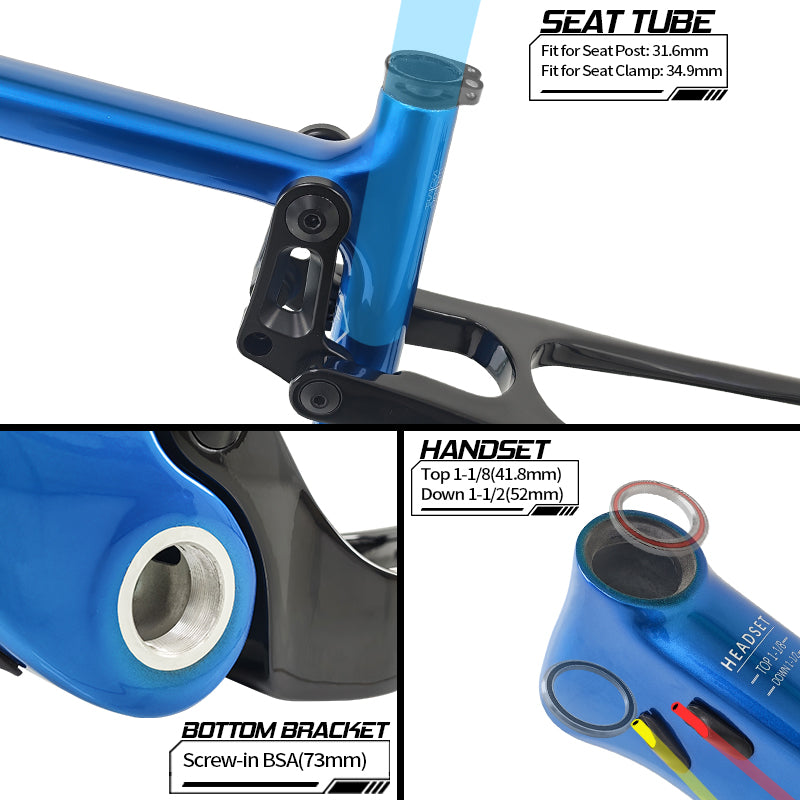

Fit for Seat Clamp: 34.9mm;
Fit for Seat Post: 31.6mm;
Max load: 250kg;
Fit for Disc Brake: 160mm;
Fit For Bottom Bracket: Screw-in BSA(73mm);
Recommend Fork Travel: 80-100mm;

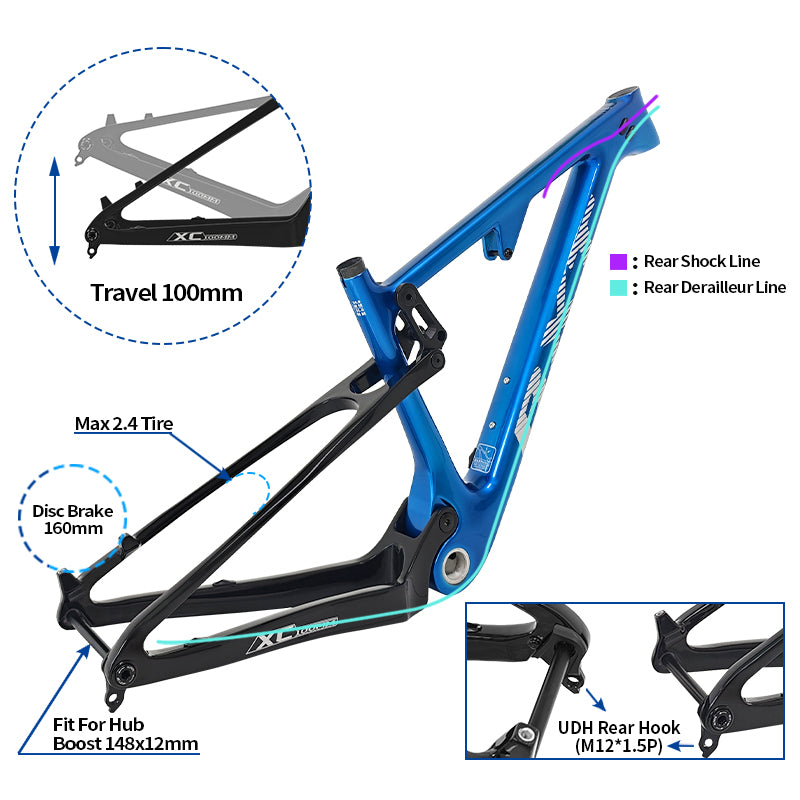

Rear Spacing Specification: 135x9 and 142x12 or Boost 148x12mm;
Fit for Headset: Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm);
Fit for Tire: 29er.Max 2.25Tire(BOOST Frame Max 2.35Tire);
Brake,Derailleur Cable: Frame Internal;
Order Contains: Frame+Thru Axle Quick+Seat Clamp+Rear Hook;
