Specifications
| Hign-concerned Chemical | None |
Surface Processing Mode
|
Matte |
| is_customized | Yes | Model Number | BXT-GRAVEL-135 |
| Use | Road Bicycles | Weight | 1300g+/-100g for 52cm Frame |
| Foldable | No |
Material
|
Carbon |
| Brand Name | BXT | Origin | Mainland China |
| Type |
Thru Axle Gravel Bike Carbon Frame
|
Material | T700+T800 Carbon Fibre |
| Fit for Bottom Bracket |
Screw-in BSA(68mm)
|
Fit for SeatClamp | 31.8mm |
| Fit for Seat Post |
27.2mm
|
Fit for Brake System | Flat-Mounted Disc Brake(140mm) |
| Fit for Headset | Top 1-1/2(52mm),Down 1-1/2(52mm) |
Fit for Tire
|
700Cx47C or 27.5er 2.1 Tire |
| Fit for Wheel Hub | Fork(100x12mm),Frame(142x12mm) |
Fit for Derailleur Type
|
Mechanical Both |
|
Max Load
|
150Kg | Brake and Derailleur line | Fully Hidden |
| Recommend Height |
XS:49CM(155-164cm)/S:52CM(165-172cm)/M:54CM(173-180cm)/L:56CM(181-187cm)/XL:58CM(188-196cm) |
Order Contains | Frame+Fork+Handleba+Seat Clamp+Thru Axle Skewers+Headset |
Product Description

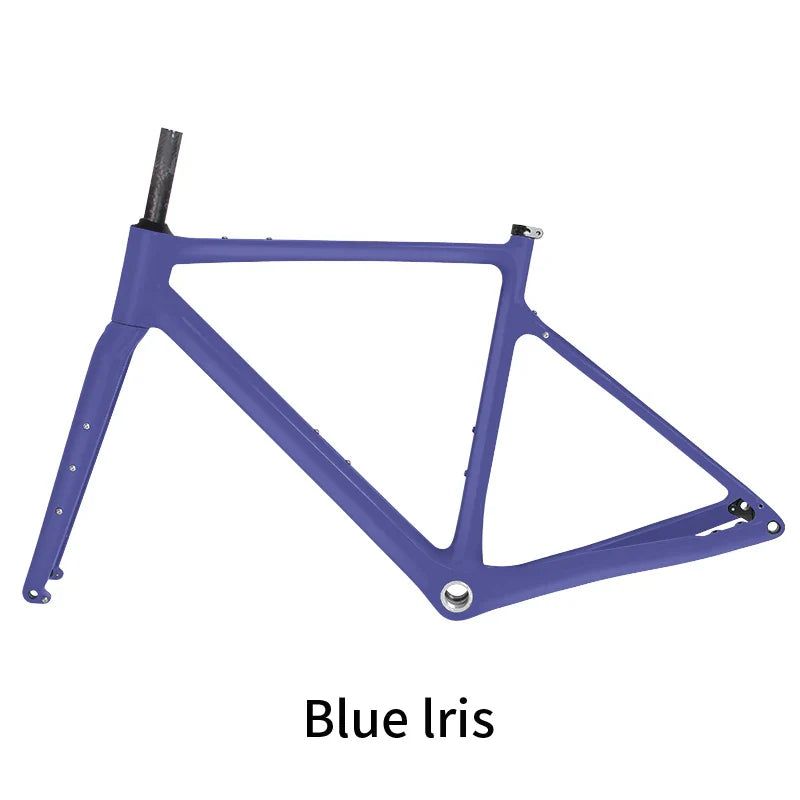

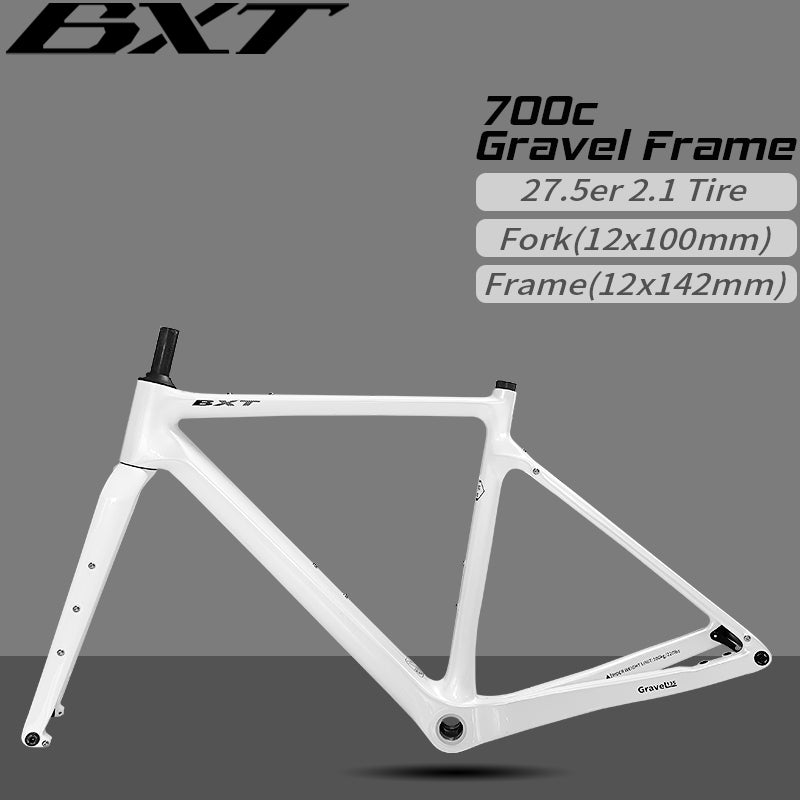

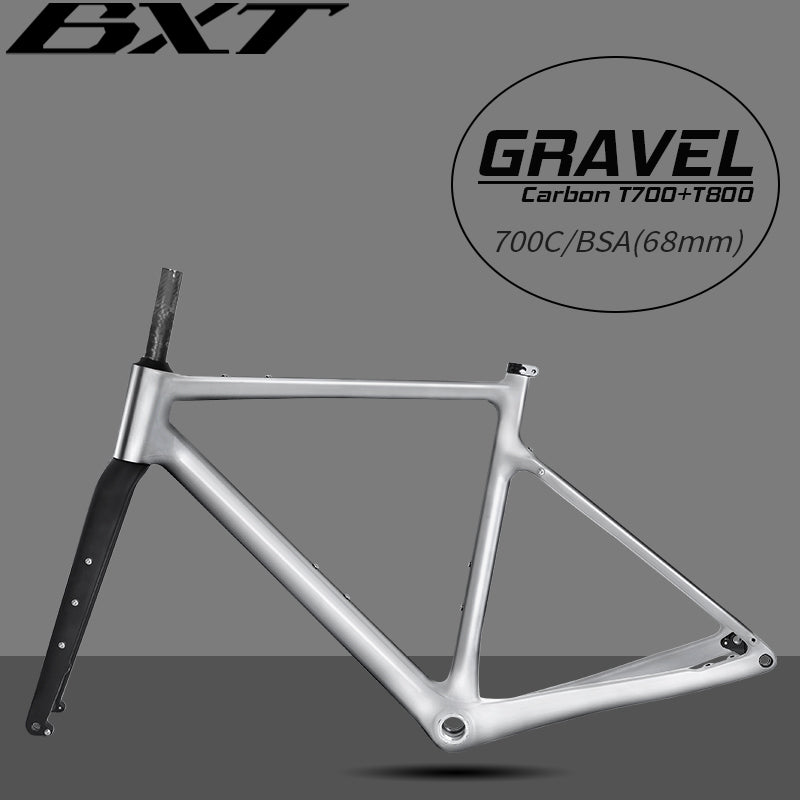

Type: Internal Cable Gravel Bicycle Frameset;
Material: T700+T800 Carbon Fibre;
Fit for Bottom Bracket: Screw-in BSA(68mm);
Fit for SeatClamp: 31.8mm;
Fit for Seat Post: 27.2mm;
Fit for Headset: Top 1-1/2(52mm),Down 1-1/2(52mm);
Fit for Brake System: Flat-Mounted Disc Brake(140mm);
Fit for Wheel Hub: Fork(100x12mm),Frame(142x12mm);
Fit for Tire: 700Cx47C or 27.5er 2.1 Tire;
Fit for Derailleur Type: Mechanical Both;
Brake and Derailleur line:Fully Hidden;
Max Load: 250kg;
Recommend Height: 49CM(155-164cm)/52CM(165-172cm)/54CM(173-180cm)/56CM(181cm-187cm)/58CM(188cm-196cm);
Order Contains: Frame+Fork+Seat Clamp+Thru Axle Skewers+Headset;
