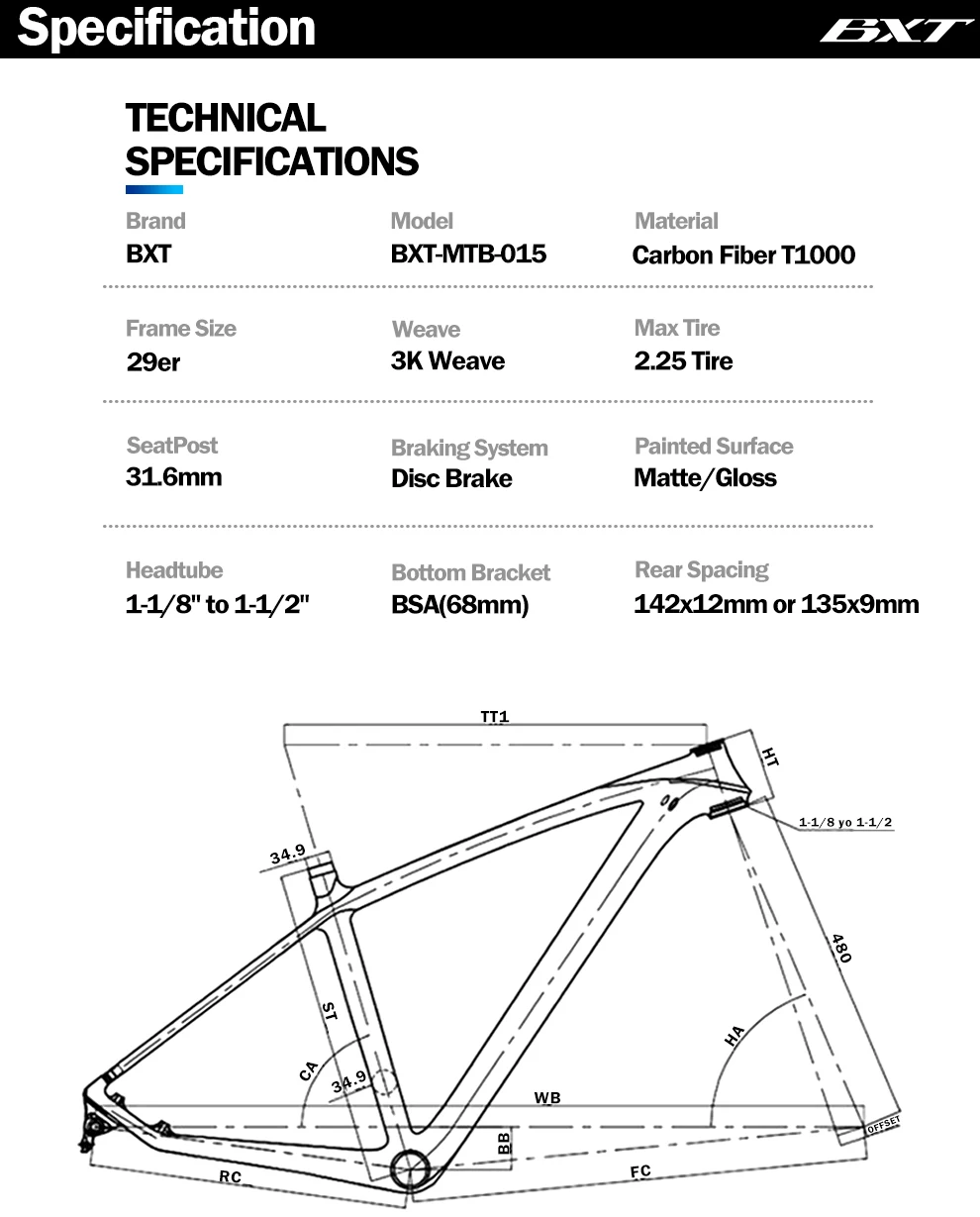

Specifications
| Hign-concerned Chemical | None |
Surface Processing Mode
|
Matte |

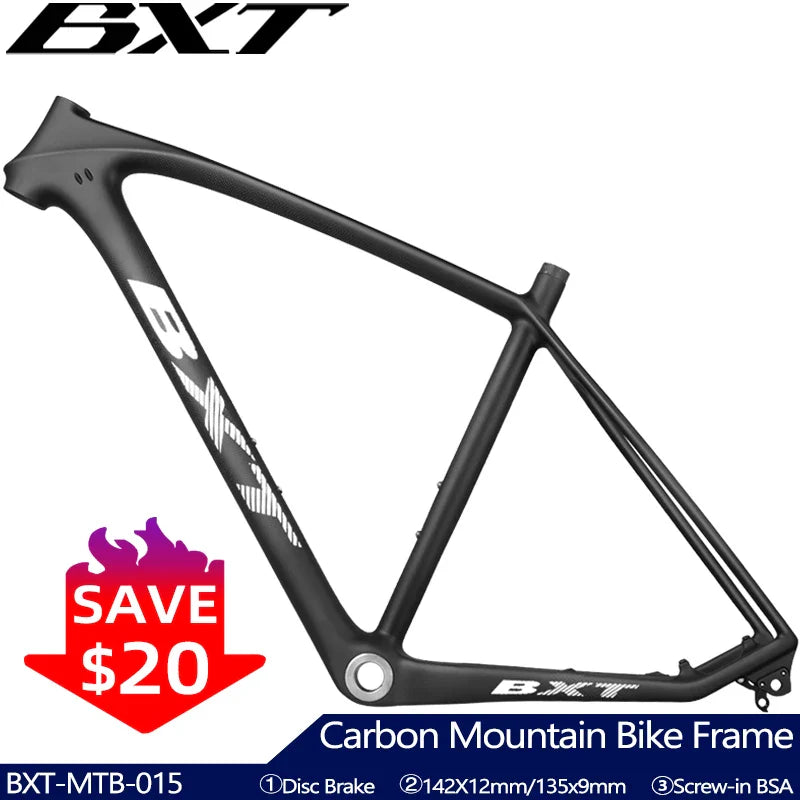

| is_customized | Yes | Model Number | BXT-MTB-015 |
| Use | Mountain Bikes,carbon frame | Weight | 1300g+-100g(for 15.5 size) |
| Foldable | No |
Material
|
Carbon |

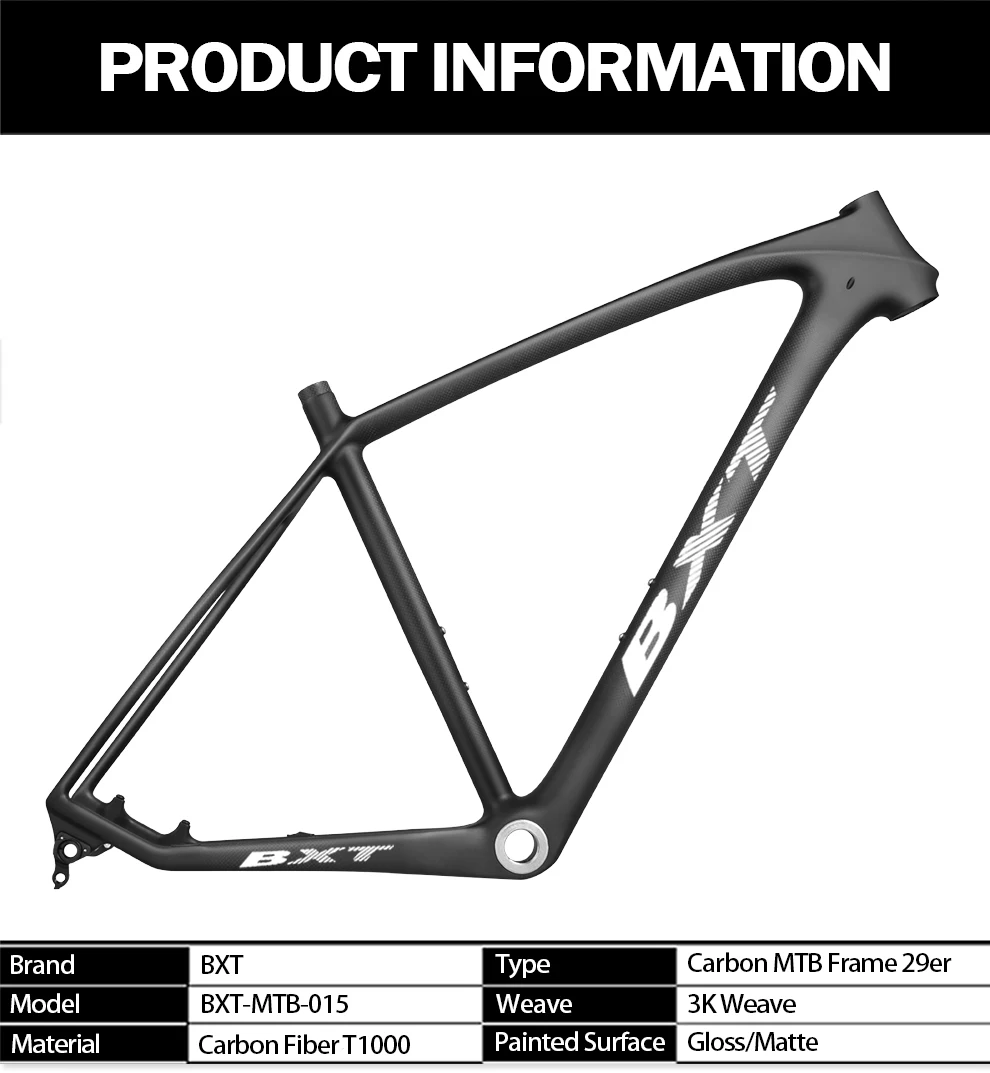

| Brand Name | BXT | Origin | Mainland China |
| Type |

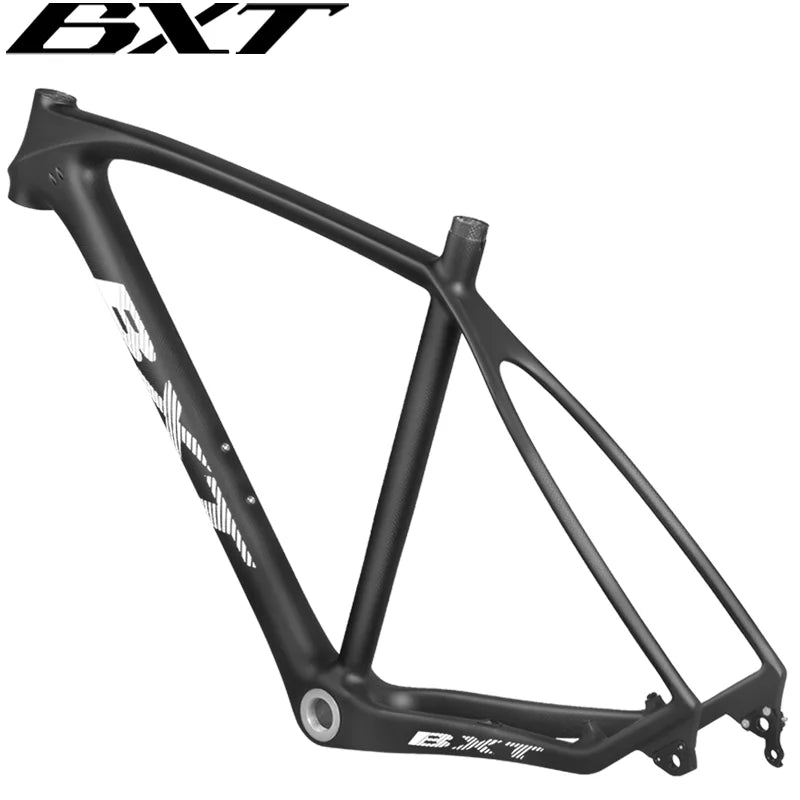

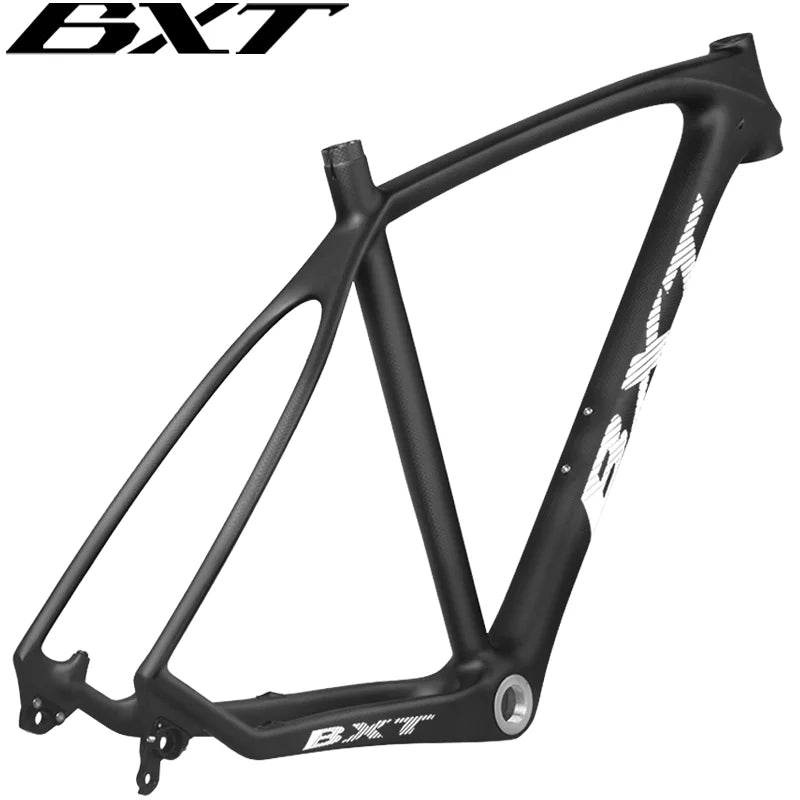

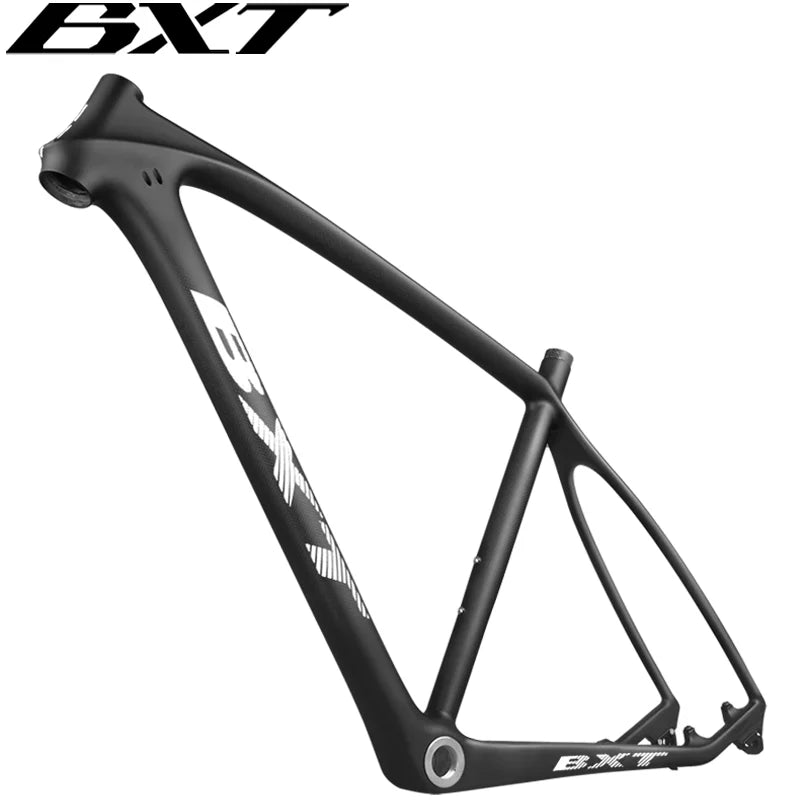

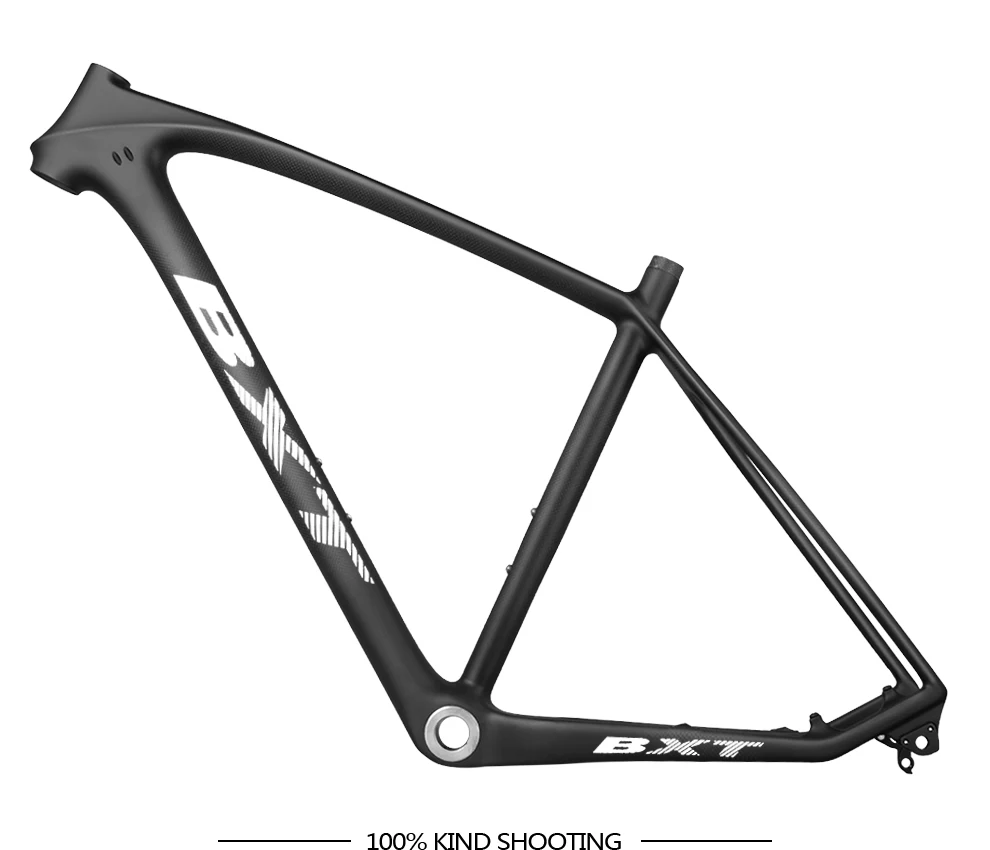

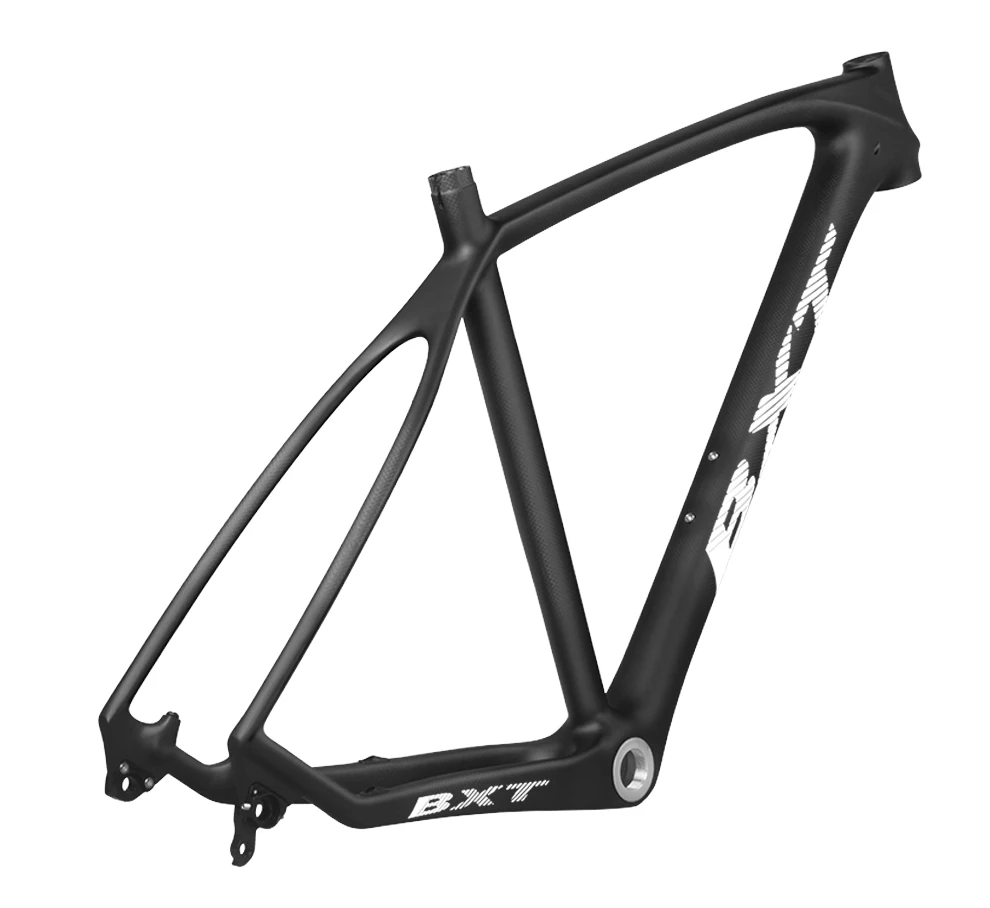

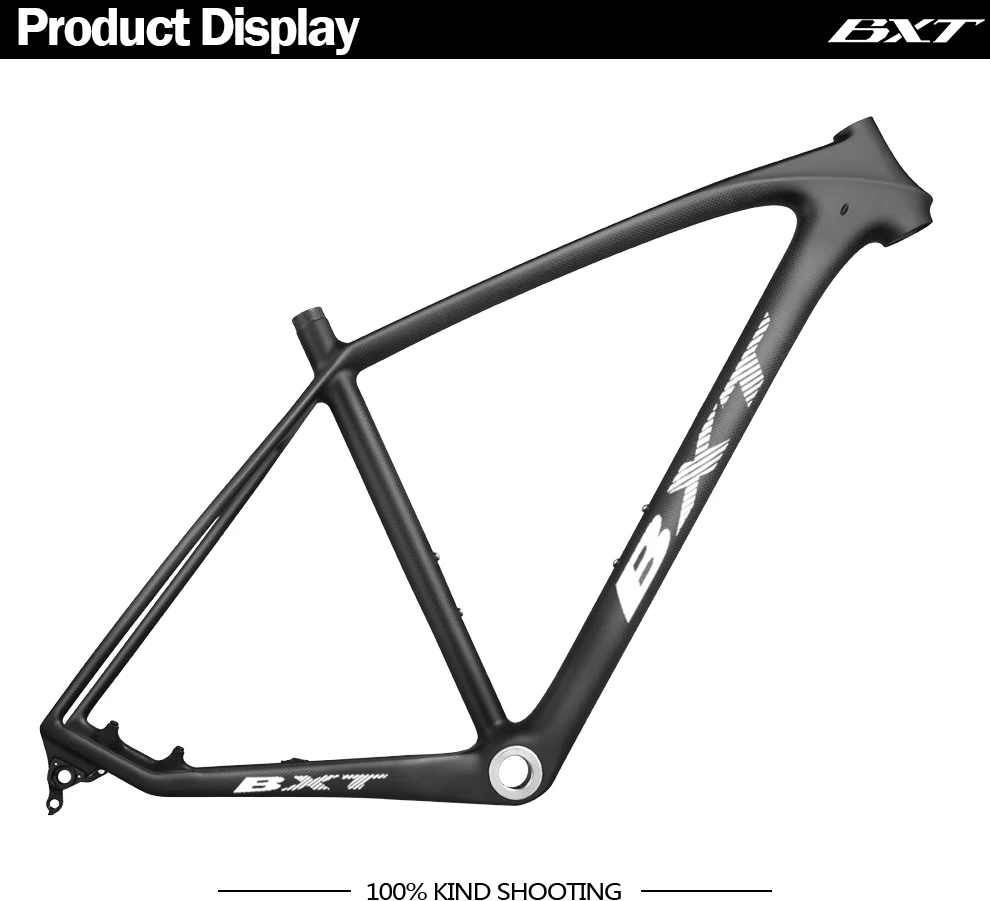

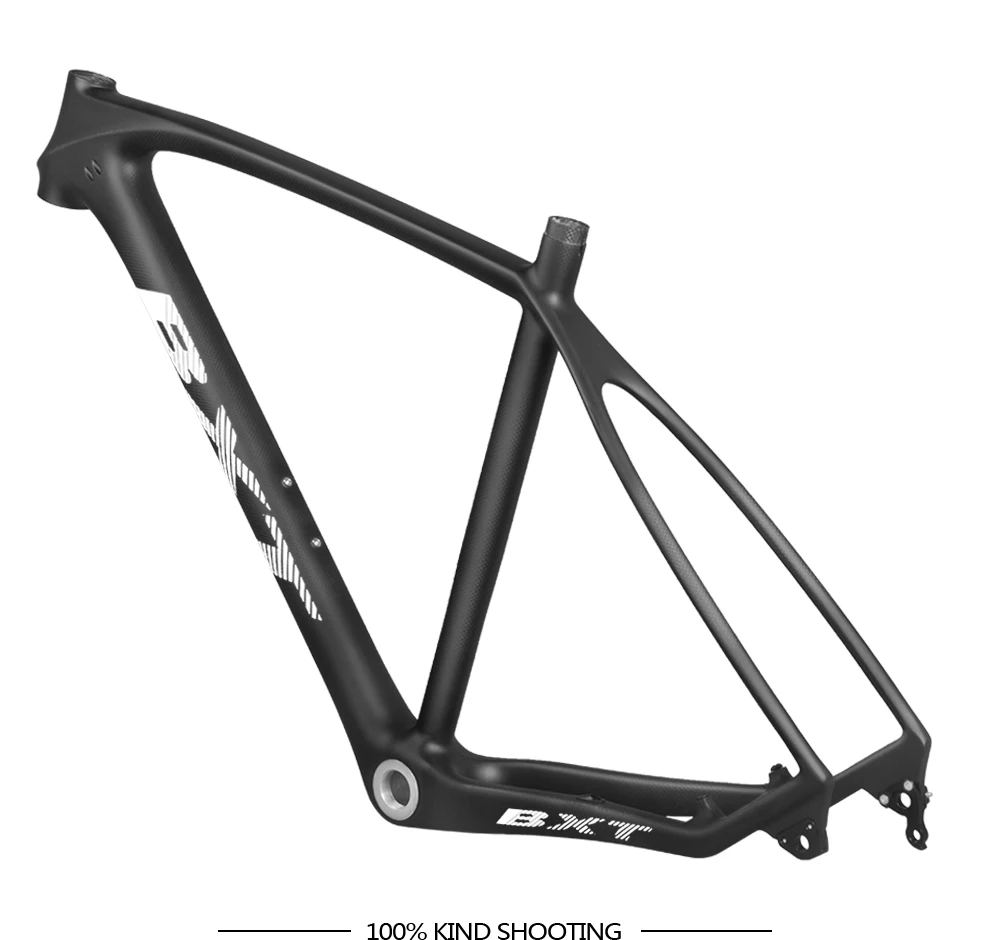

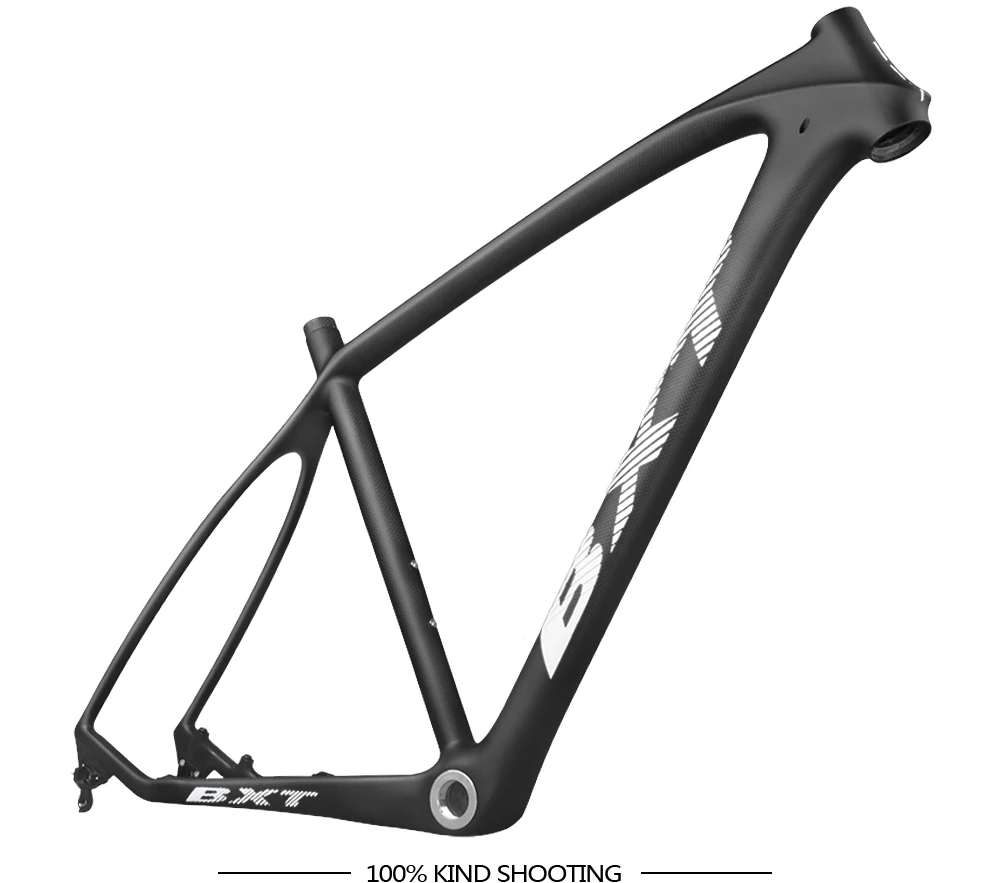

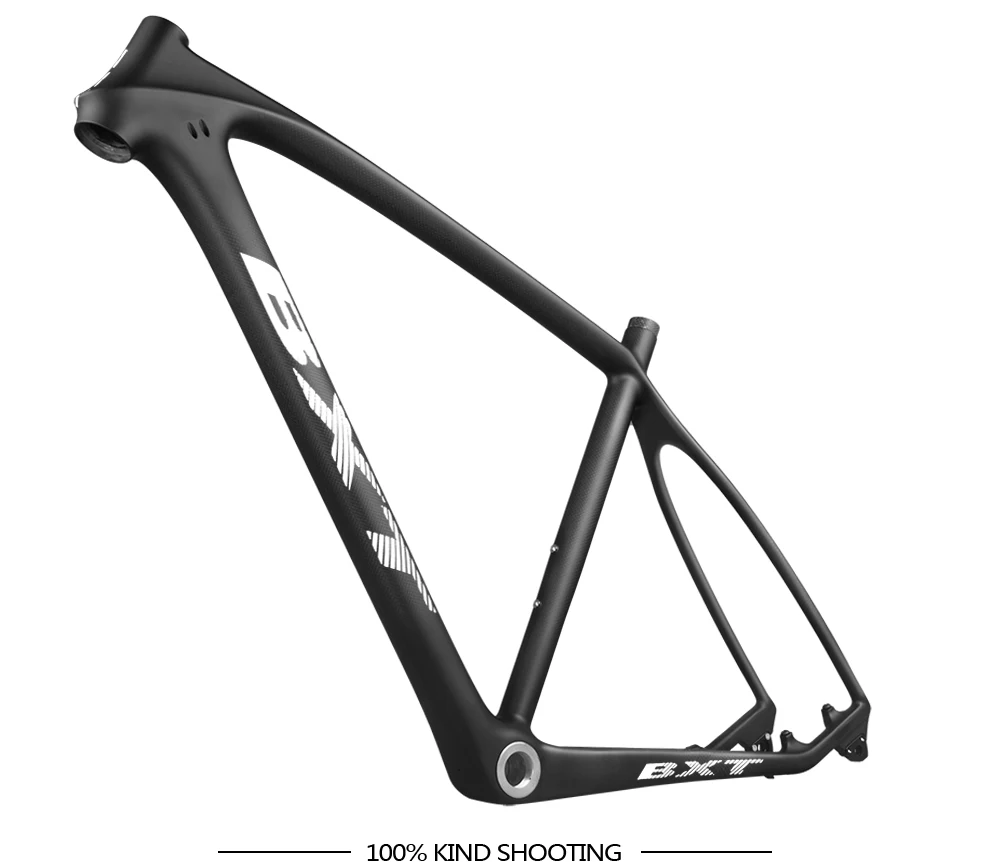

Carbon MTB Rigid XC Frame 29er
|

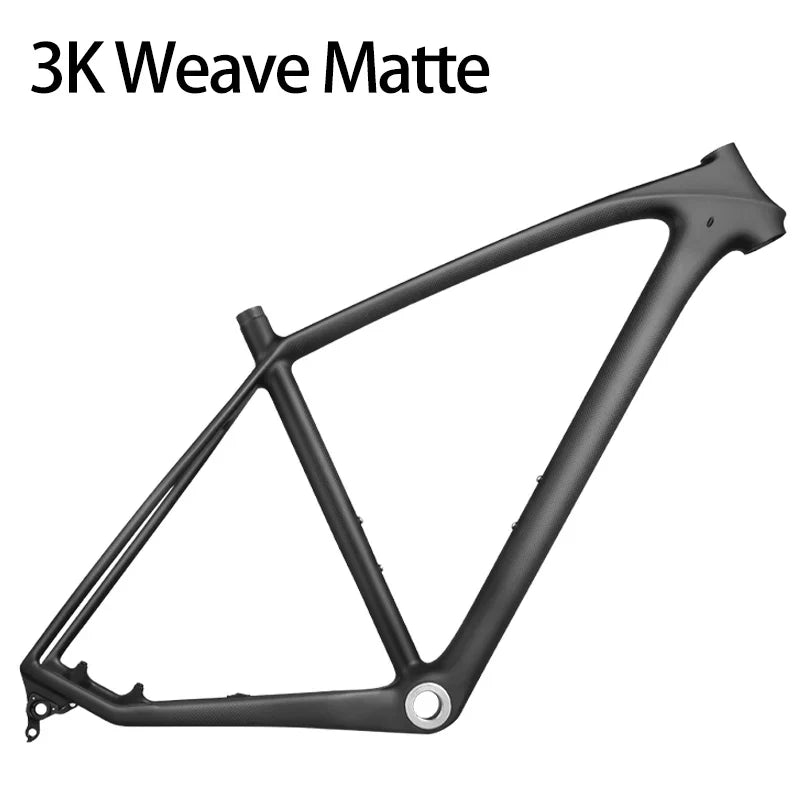

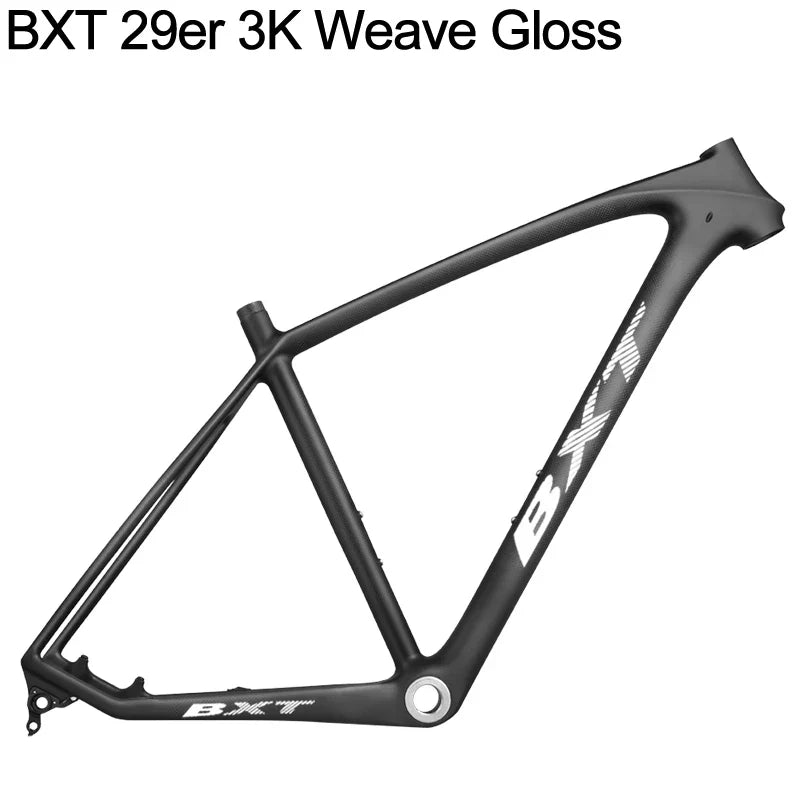

Weave | 3K Weave |
| Max load |
250kg
|

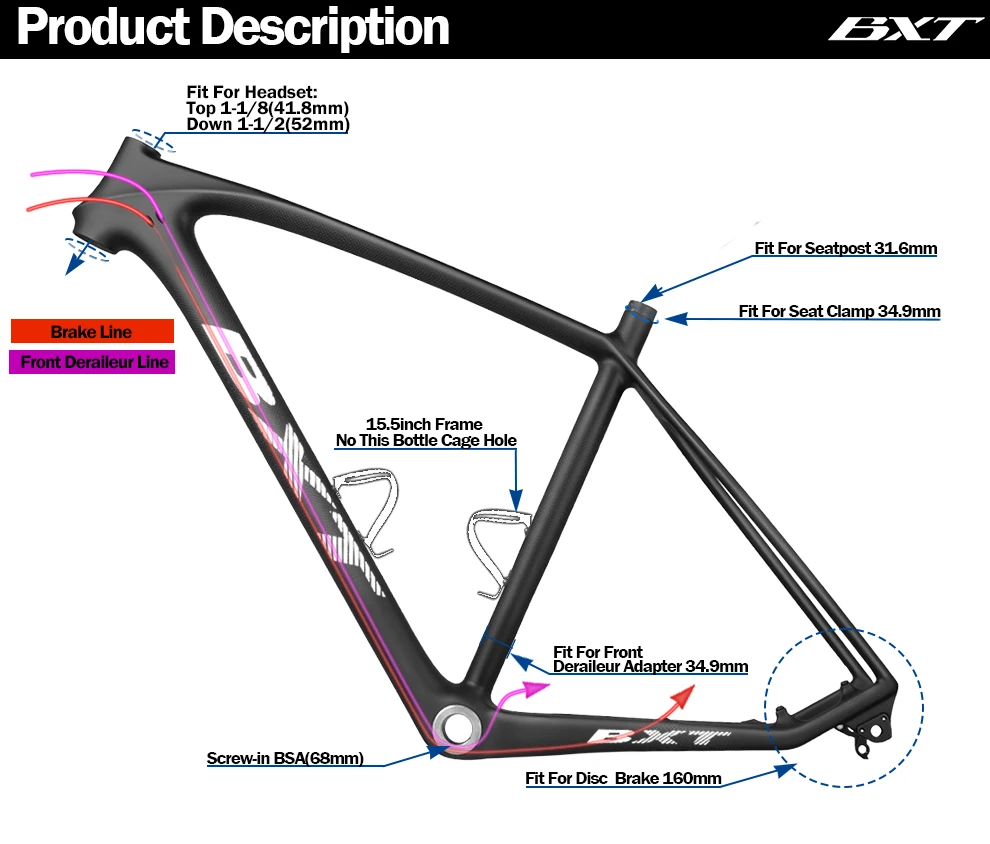

Fit for Seat Clamp | 34.9mm |
| Fit for Seat Post | 31.6mm |
Fit for Front Derailleur Adapter
|
34.9mm |

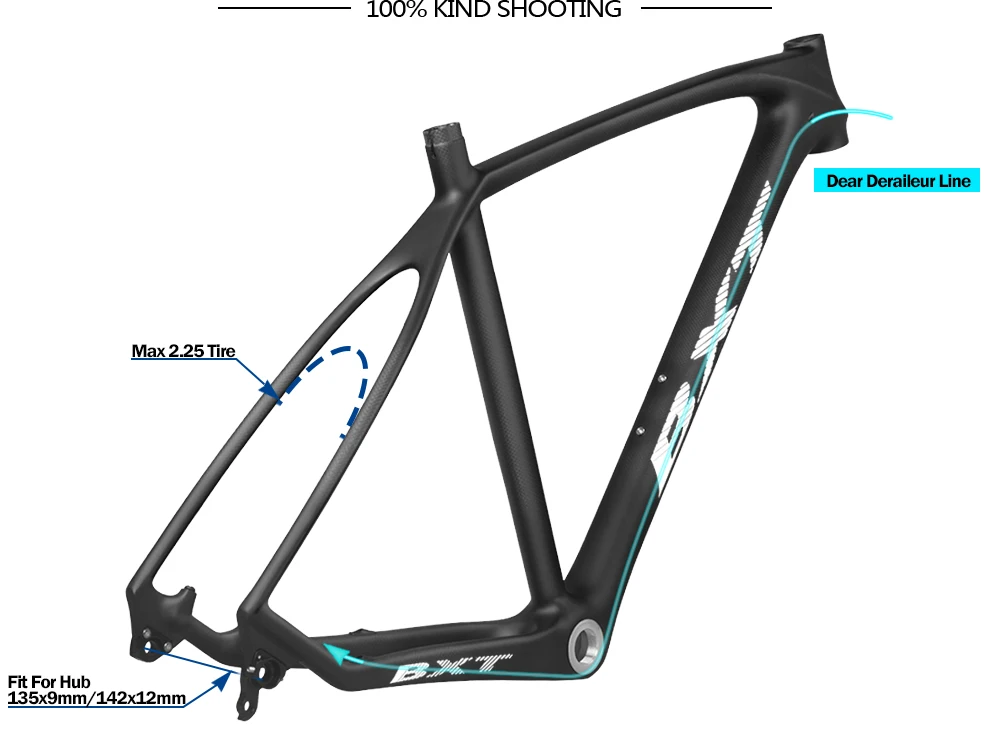

| Fit for Tire | Max 2.25 Tire |
Fit for Disc Brake
|
160mm |
| Fit For Bottom Bracket | BSA(68mm) | Fit for Fork Travel | 80-100mm |
| Fit for Fork | Rigid Fork,Suspension Fork.Straight Tube,Tapered Tube(39.8mm) | Fit for Headset | Tapered;Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
|
Brake,Derailleur Cable
|

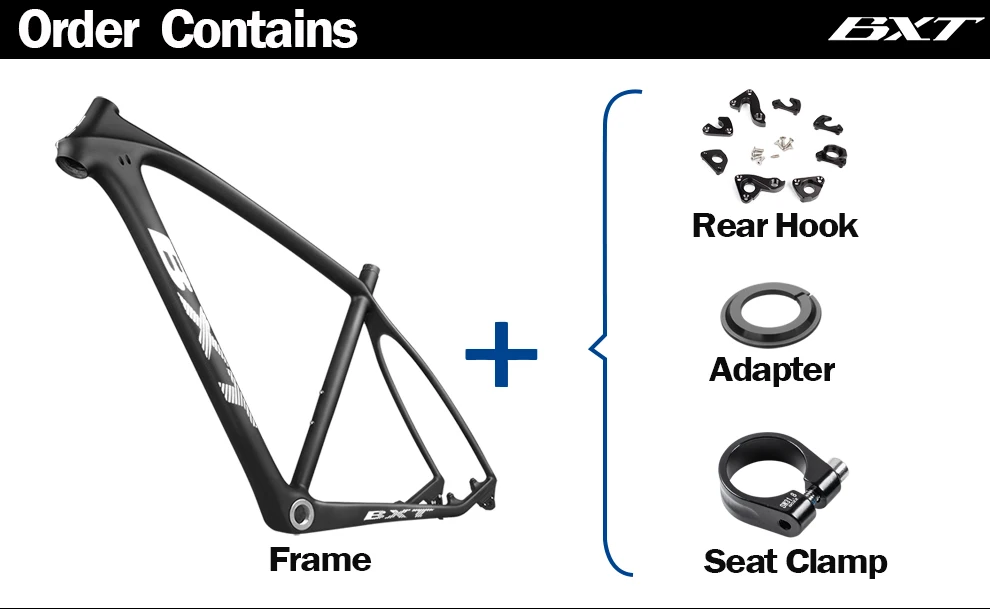

Frame Internal | Order Contains | Frame+Seat Clamp+Straight Fork Adapter+Rear Hook(9mm and 12mm) |
If you need without logo,Please contact us.
If you want to buy rear thru axle 142x12mm or headset,please click the picture.
