Specifications
| Hign-concerned Chemical | None | Surface Processing Mode | Matte |
| is_customized | Yes | Model Number | BXT-EMTB-217 |
| Use | Mountain Bikes | Weight | 3500g+/-200g(For M size) |
| Foldable | No | Material | CARBON |
| Brand Name | BXT | Origin | Mainland China |
| Type | 29er Full Suspension E-MTB Frame | Material | T1000 Carbon Fiber |
| Frame Travel | 150mm | Fit for Rear Shock | 210*55*24mm |
| Fit for Seat Clamp | 37mm | Fit for Seat Post | 31.6mm |
| Fit for Disc Brake | 180mm | Fit For Bottom Bracket |
Bracket
Screw-in BSA(73mm)
|
| Rear Spacing Specification | Boost 148x12mm | Rear Hook | UDH(1.5 pitch) |
| Fit for Headset | Top 44mm, Down 56mm | Fit for Motor | BAFANG M500/M600 |
| Fit for Battery | BAFANG BT F010.D672.C(48V-14AH) | Fit for Tire | 29er.Max 2.5Tire |
| Max load | 200kg | Order Contains | Frame+Thru Axle Quick+Seat Clamp+Rear Hook |
Description

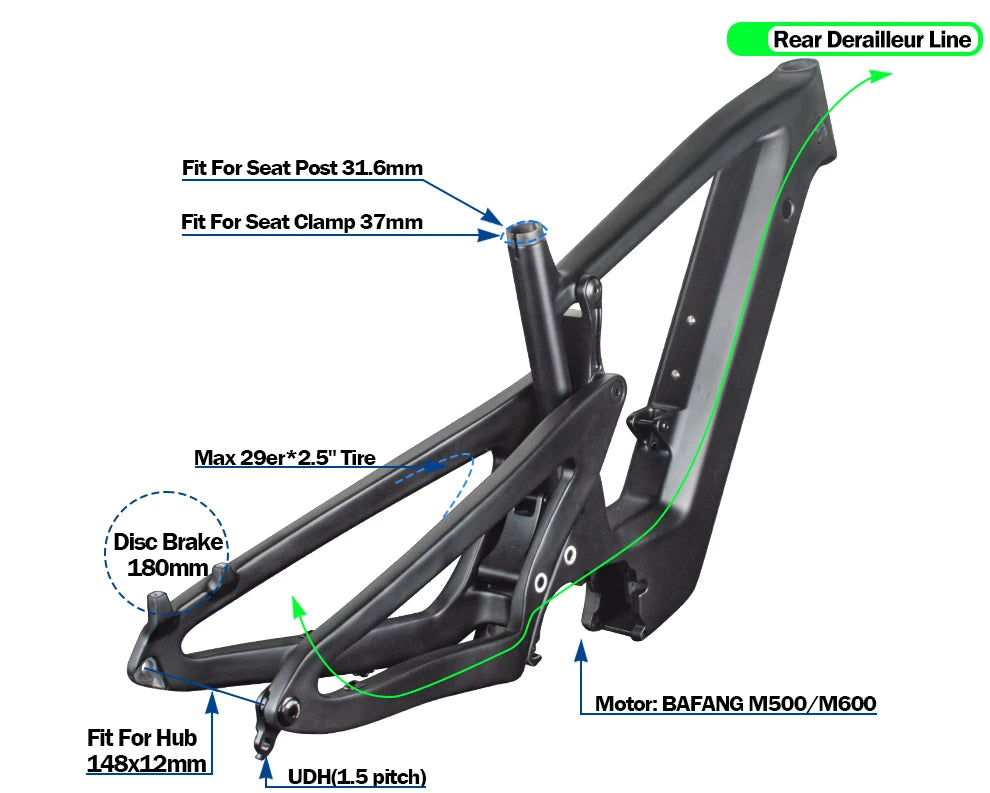

Type: E-MTB Carbon Full Suspension Frame 29er;
Material: T1000 Carbon Fiber;
Frame Travel: 150mm;
Fit for Rear Shock: 210*55*24mm;
Fit for Seat Clamp: 37mm;
Fit for Seat Post: 31.6mm;
Fit for Disc Brake: 180mm;
Fit for Motor: BAFANG M500/M600;
Fit for Battery: BAFANG BT F010.D672.C(48V-14AH);
Fit for Headset: Top 44mm, Down 56mm;
Fit for Tire: 29er.Max 2.5 Tire;
Rear Spacing Specification: Boost 148x12mm;
Rear Hook: UDH(1.5 pitch);
Max load: 150kg;
Order Contains: Frame+Thru Axle Quick+Seat Clamp+Rear Hook;
