Specifications
| Hign-concerned Chemical | None |
Surface Processing Mode
|
Matte |
| is_customized | Yes | Model Number | BXT-MTB-137 |
| Use | Kids' Bikes,Mountain Bikes,suspension frame | Weight | 2000g+-100g |
| Foldable | No |
Material
|
Carbon |
| Brand Name | BXT | Origin | Mainland China |
| Type |

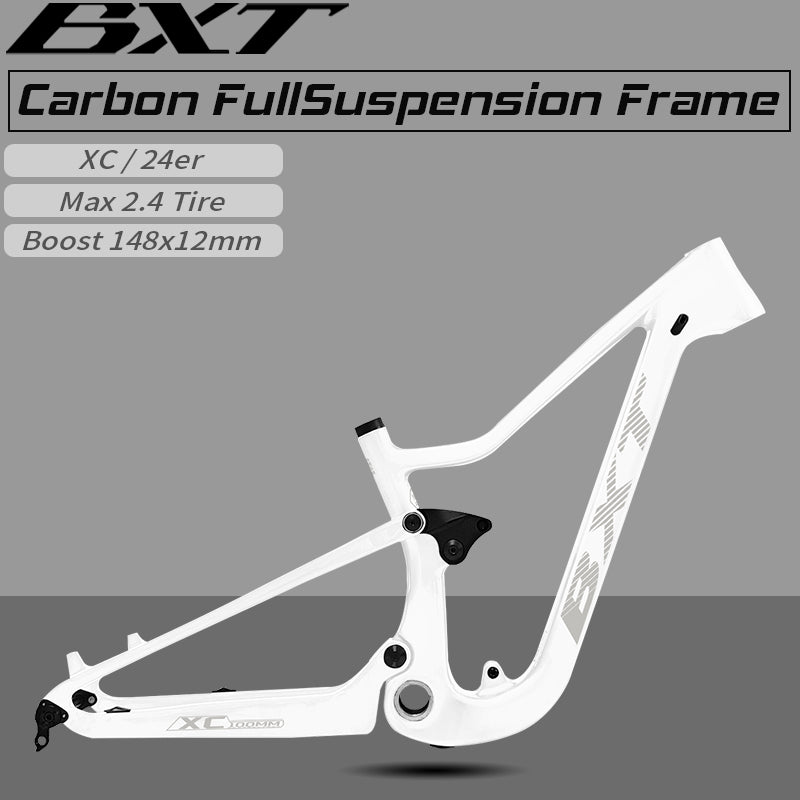

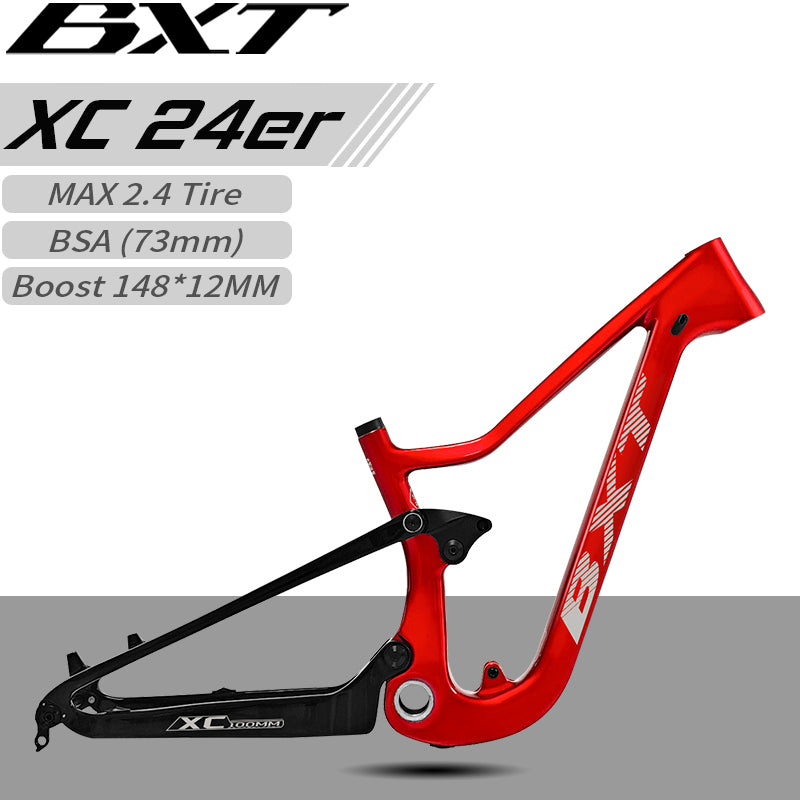

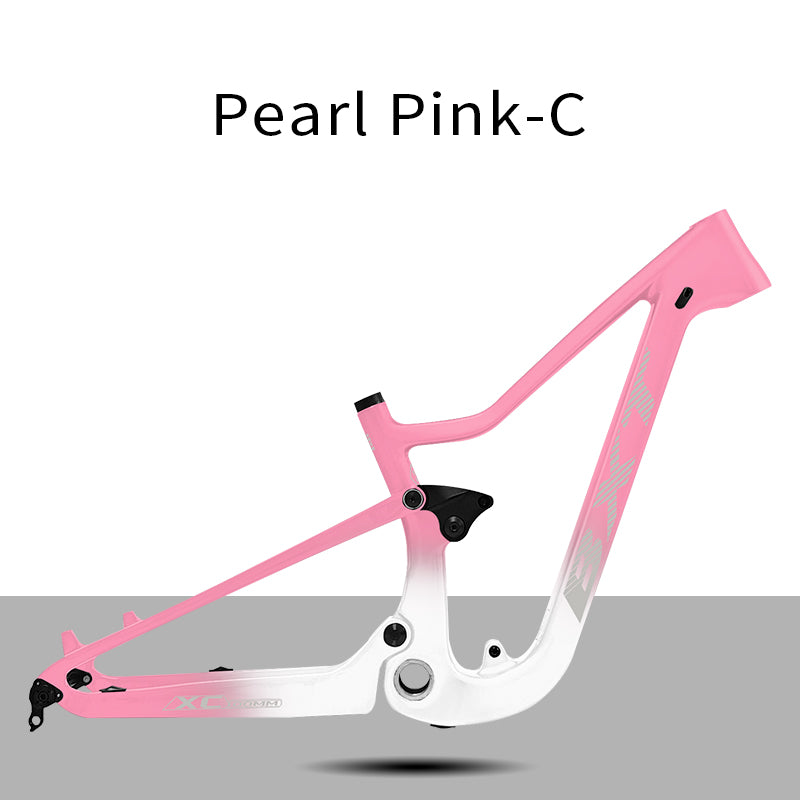

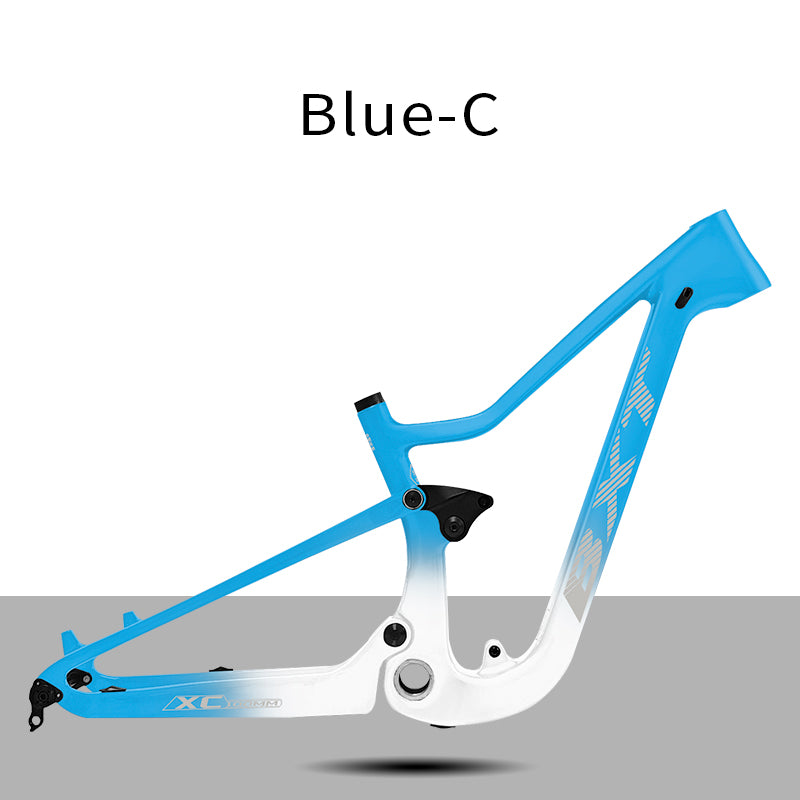

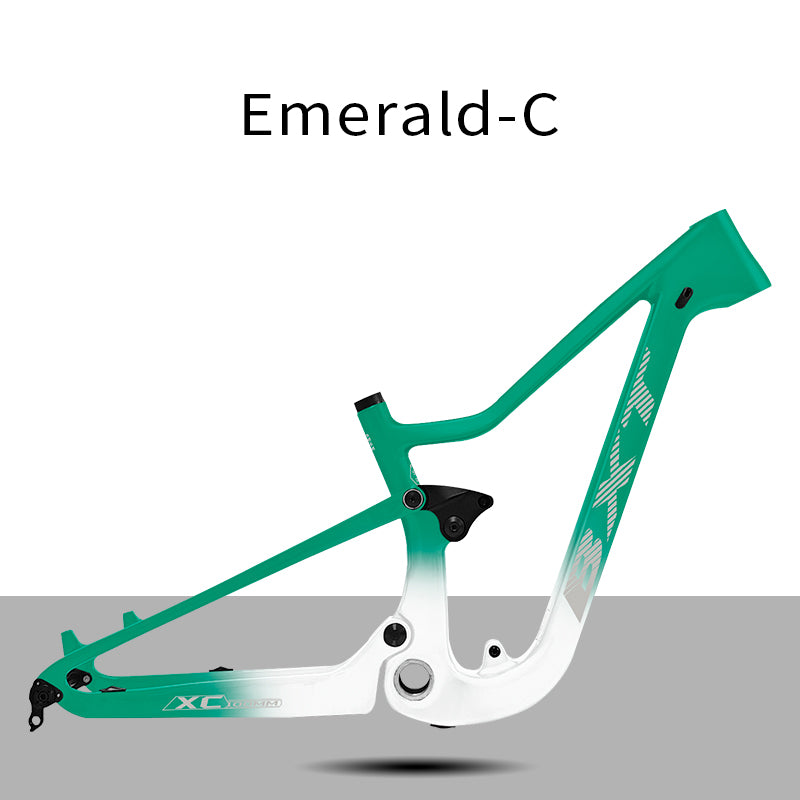

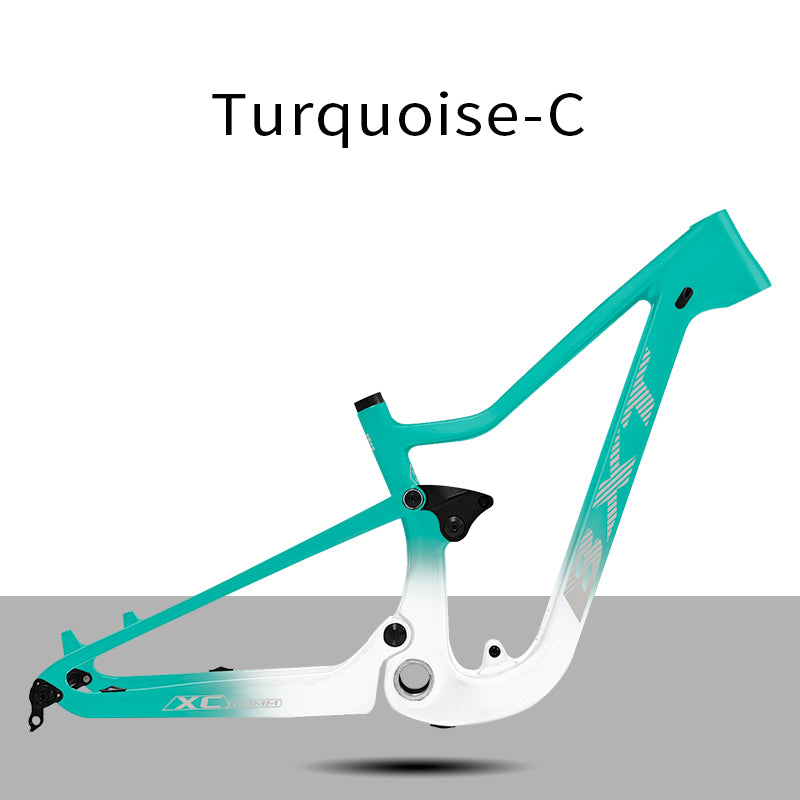

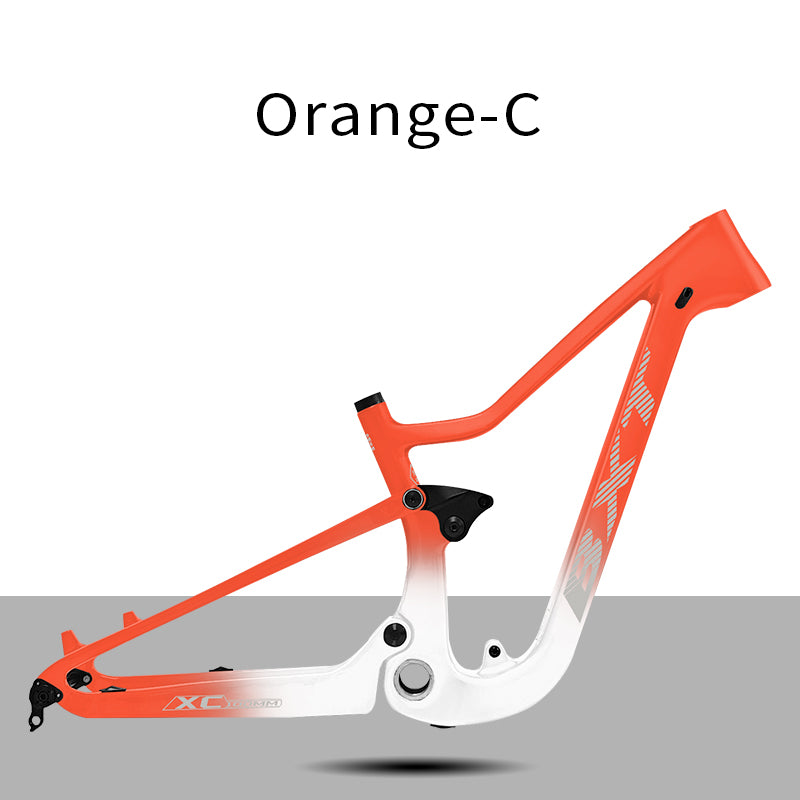

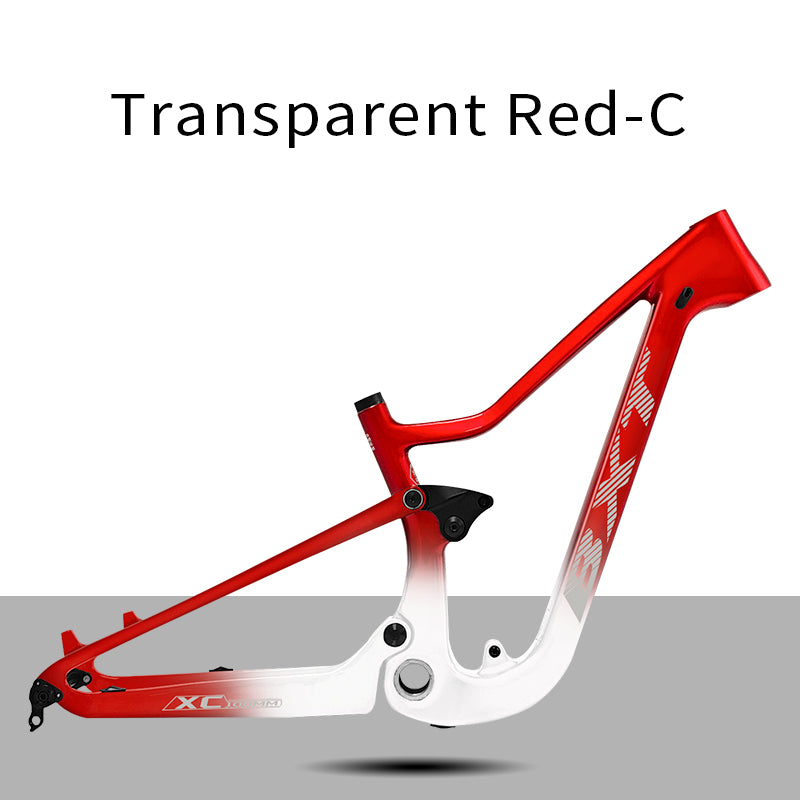

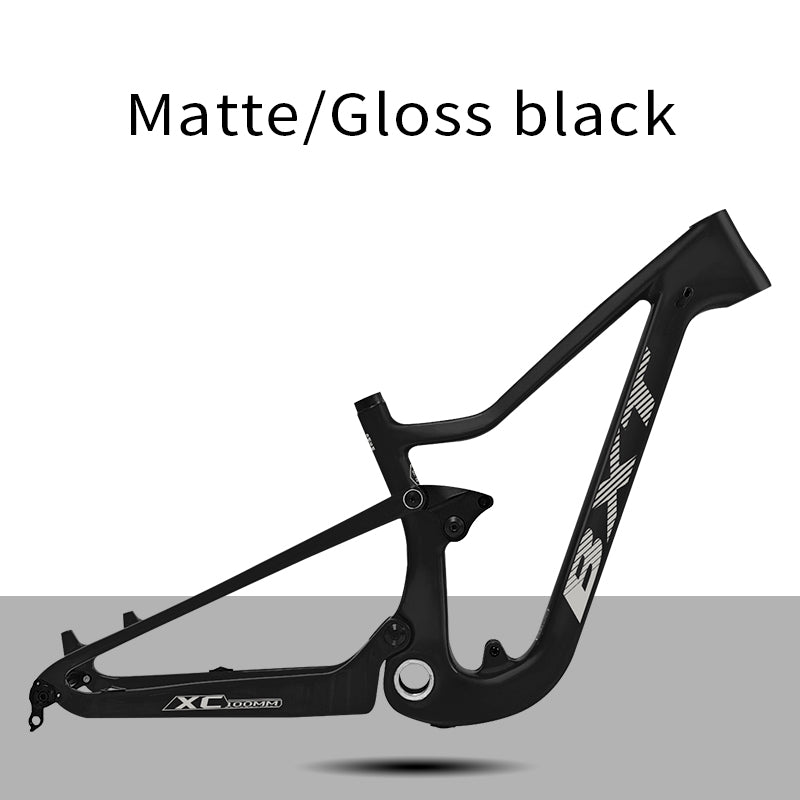

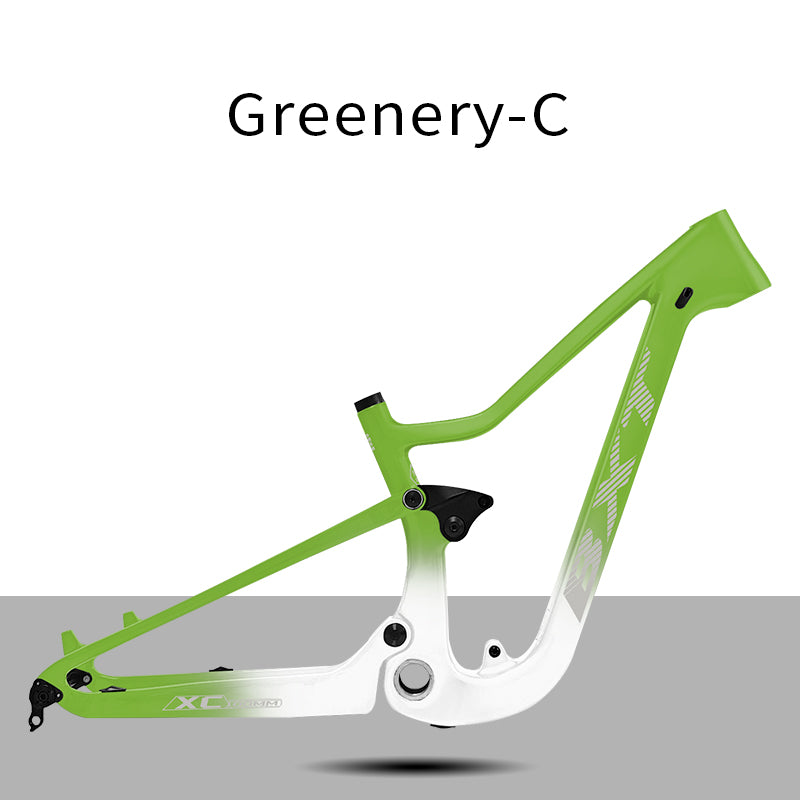

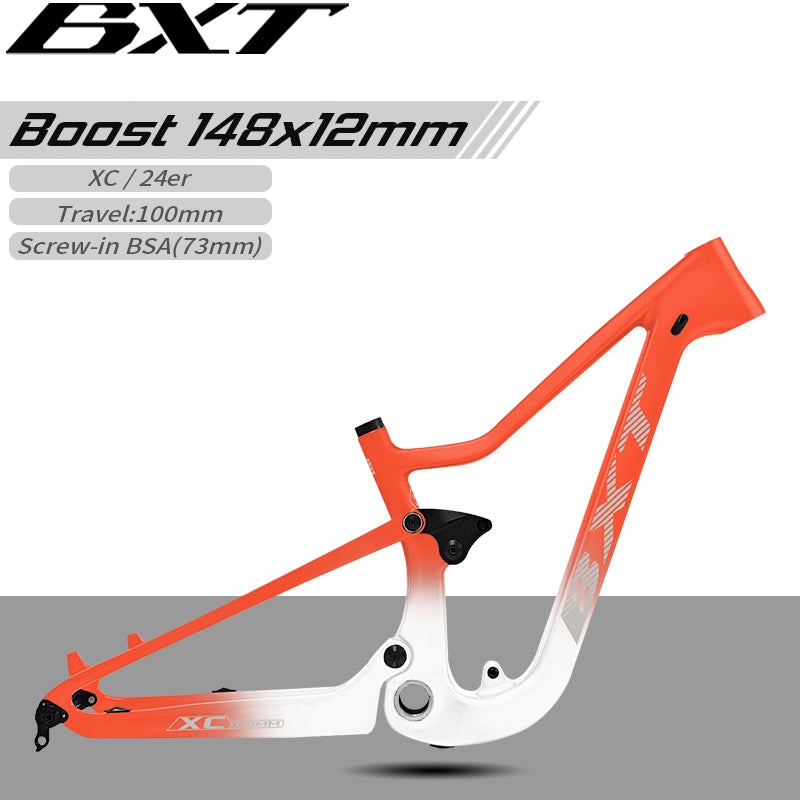

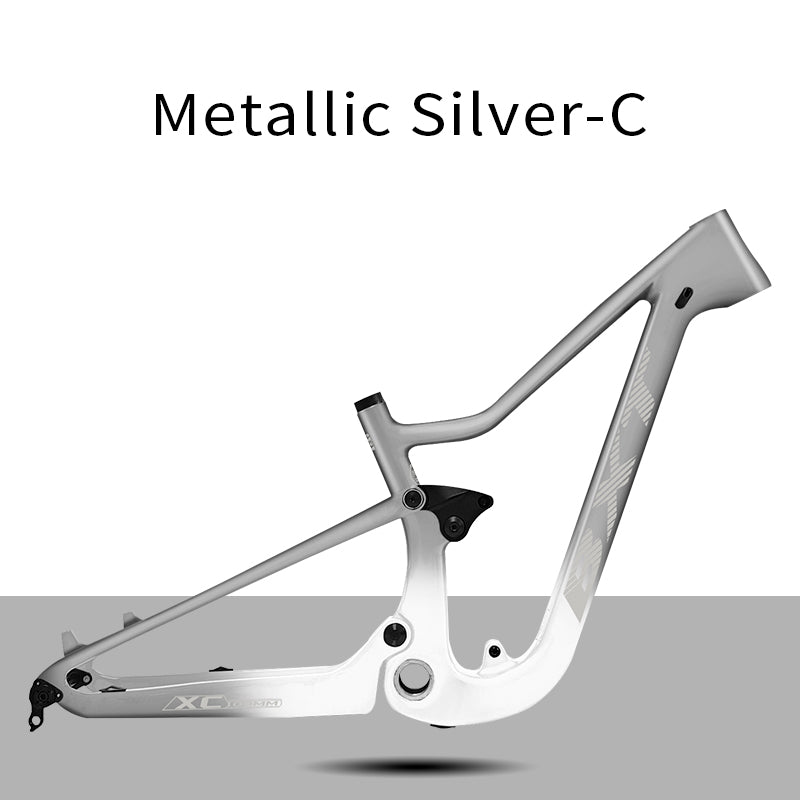

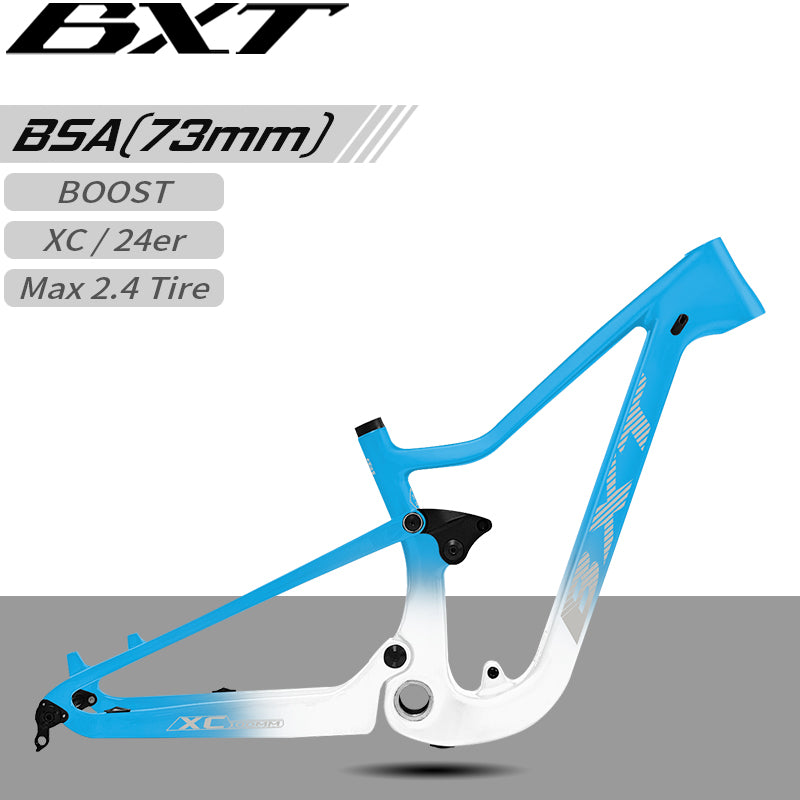

Full Carbon Suspension Bicycle Frame 24inch
|
Material | Carbon Fiber |

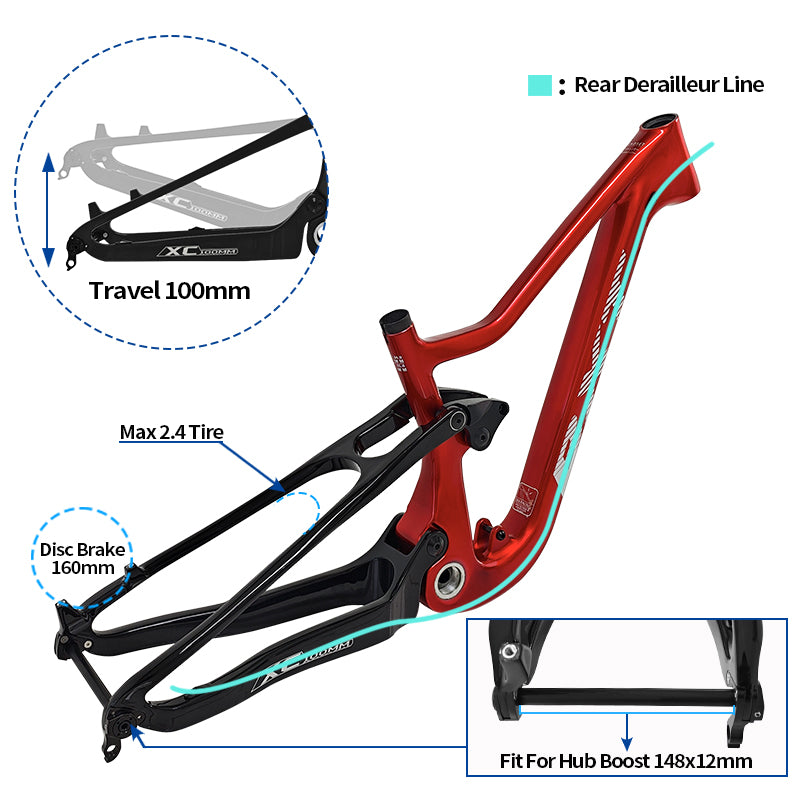

| Frame Travel |
90mm
|

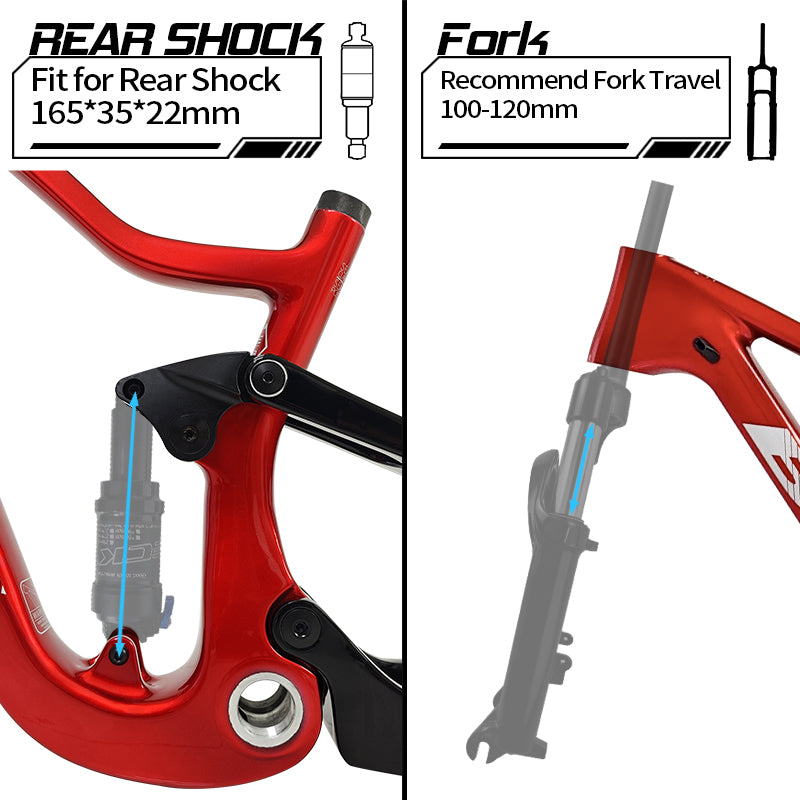

Fit for Rear Shock | Length 165mm,Bushing 22mm |

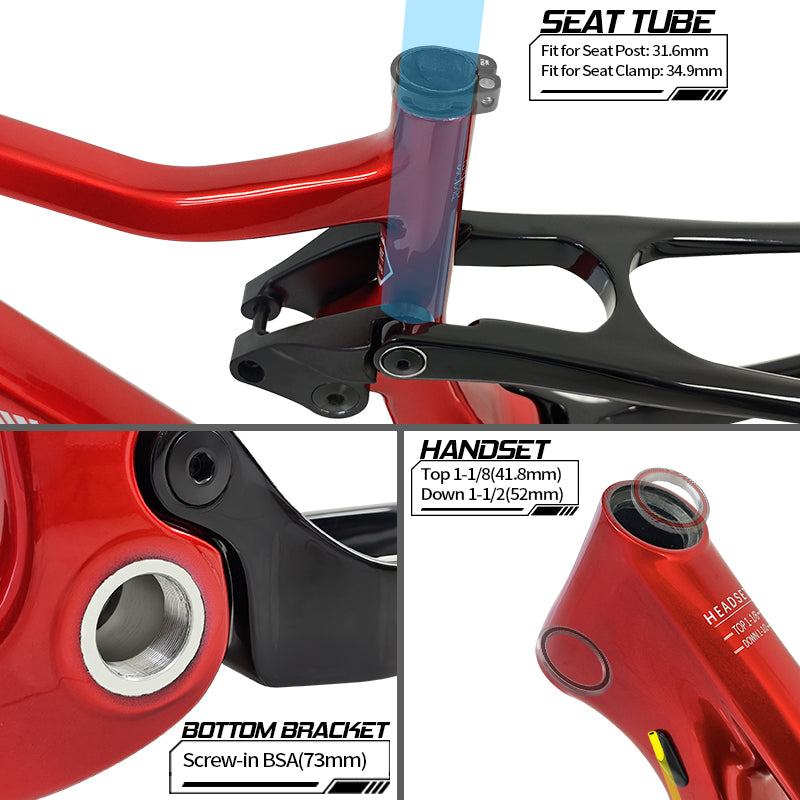

| Fit for Seat Clamp | 34.9mm |
Fit for Seat Post
|
31.6mm |
| Max load | 250kg |
Fit for Disc Brake
|
160mm |
|
Fit For Bottom Bracket
|
Screw-in BSA(73mm) | Recommend Fork Travel | 80-120mm |
| Rear Spacing Specification | Boost 148x12mm | Fit for Crank | 125mm/135mm |
| Fit for Chain Wheel | Max 34T | Seat Post Depth | 155mm |
| Suitable Height | 135cm-150cm |

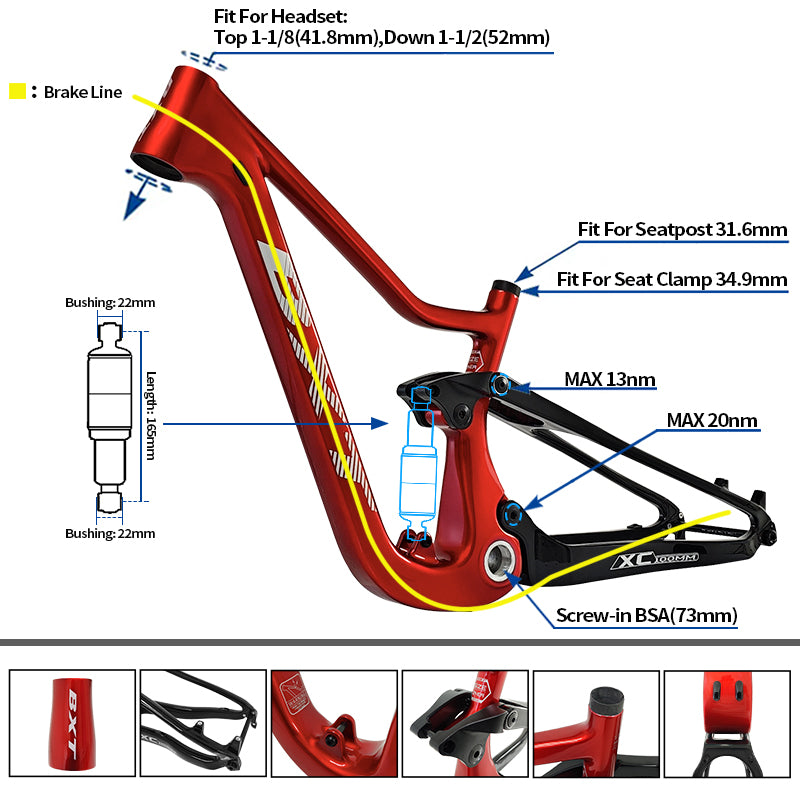

Fit for Headset
|
Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |

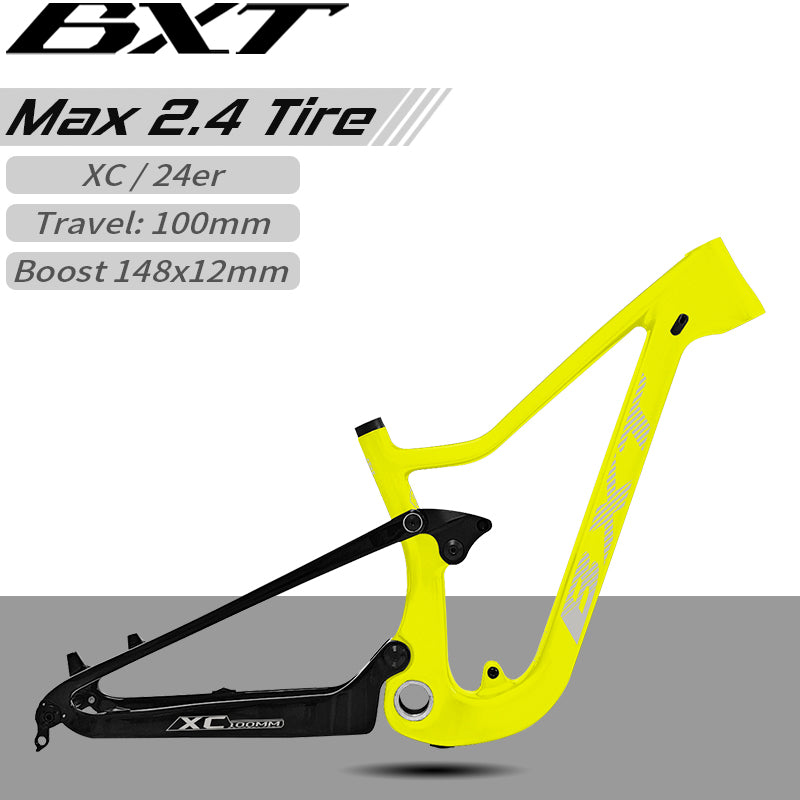

| Fit for Tire | Max 2.4Tire | Brake,Derailleur Cable | Frame Internal |

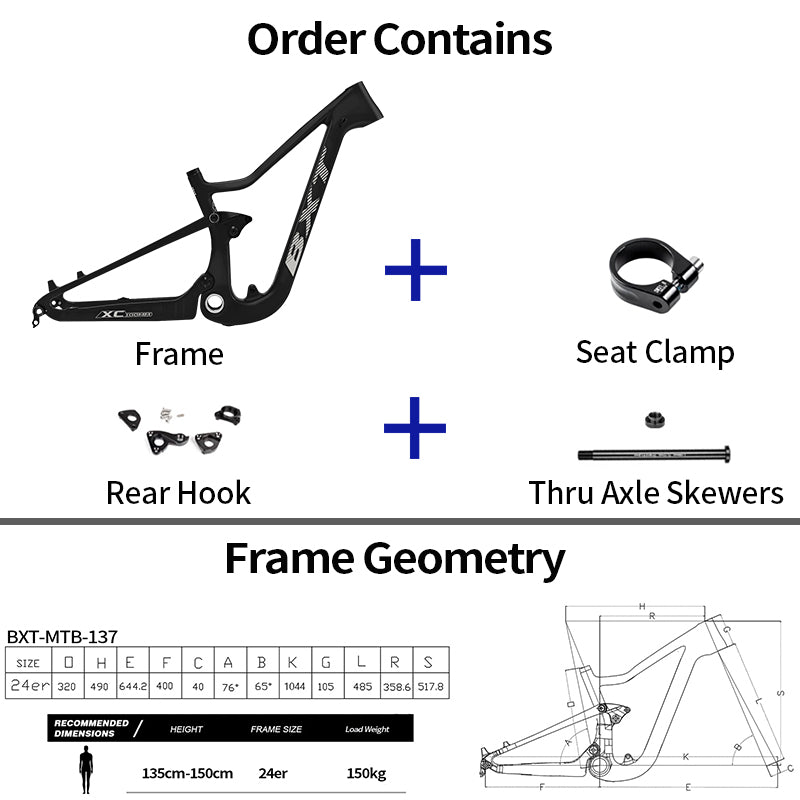

| Order Contains | Frame+Thru Axle Quick+Seat Clamp+Rear Hook |
