Specifications
| Hign-concerned Chemical | None |
Surface Processing Mode
|
Matte |
| is_customized | Yes | Model Number | BXT-MTB-087 |
| Use | Mountain Bikes,Suspension Frame | Weight | 2300g+/-100g(For S size) |
| Foldable | No |
Material
|
Carbon |
| Brand Name | BXT | Origin | Mainland China |

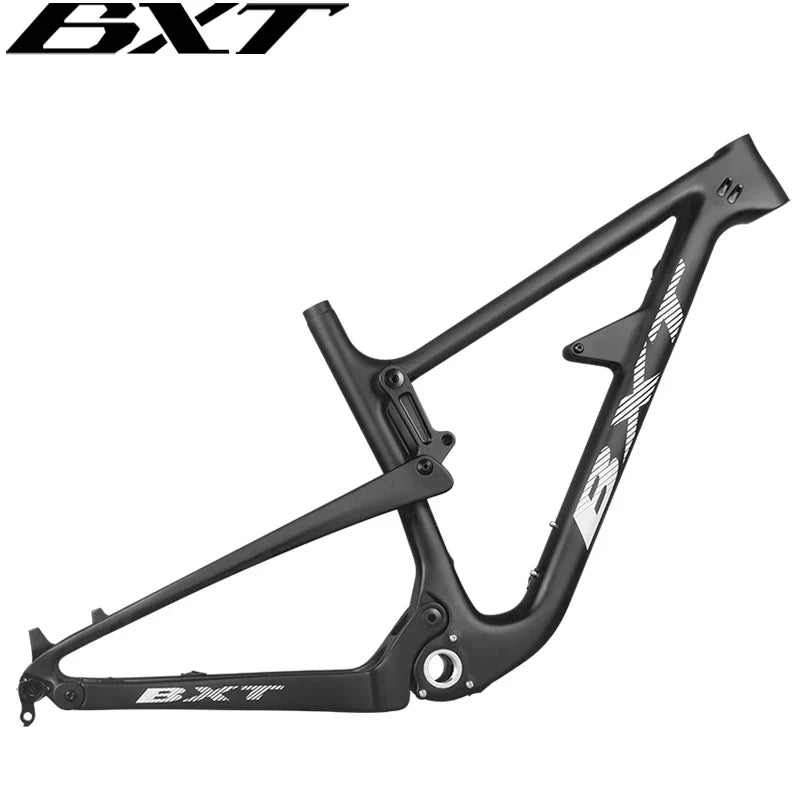

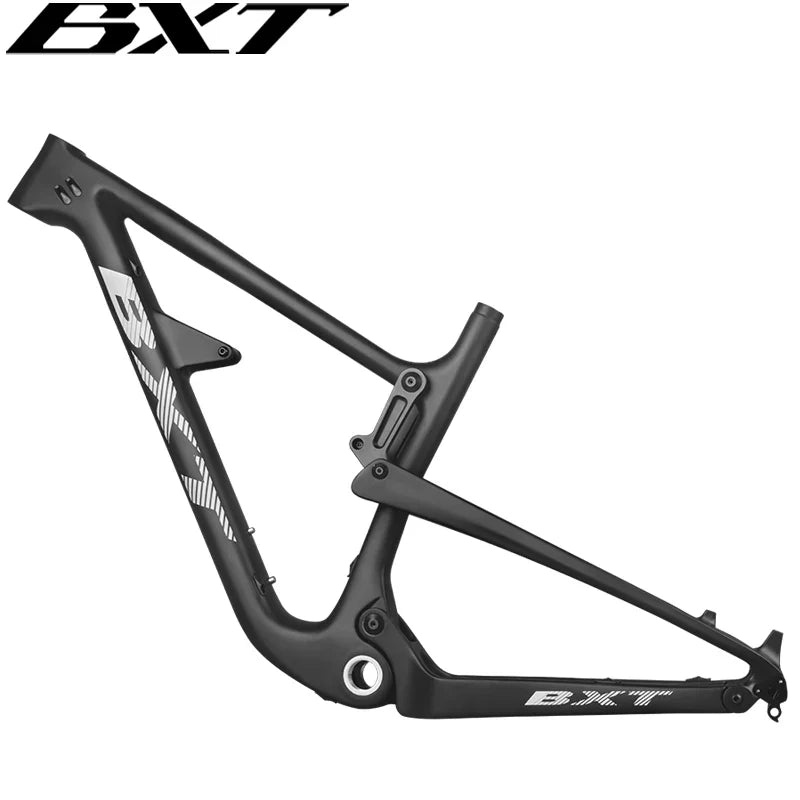

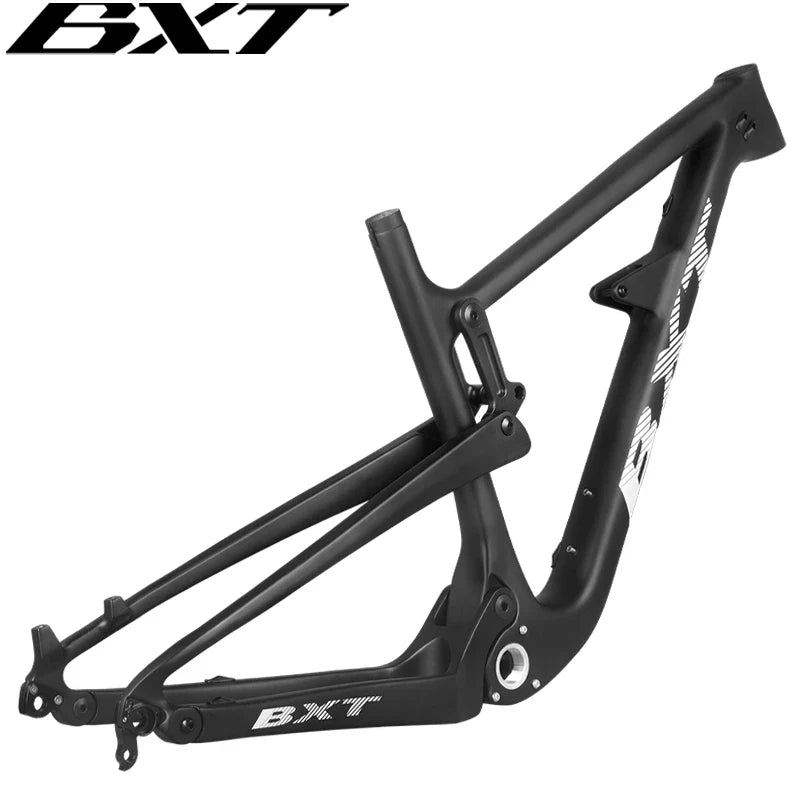

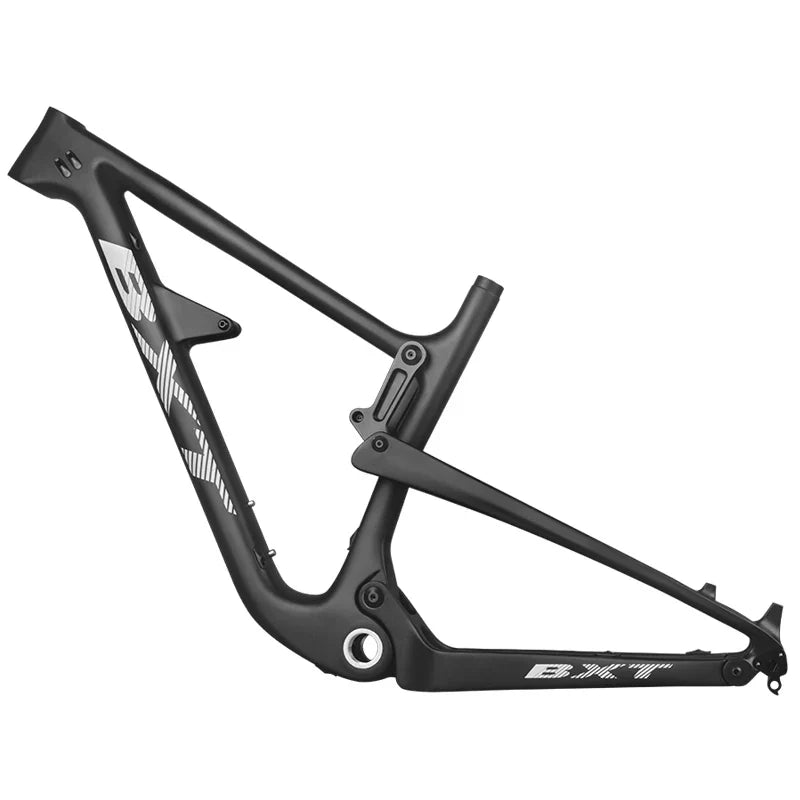

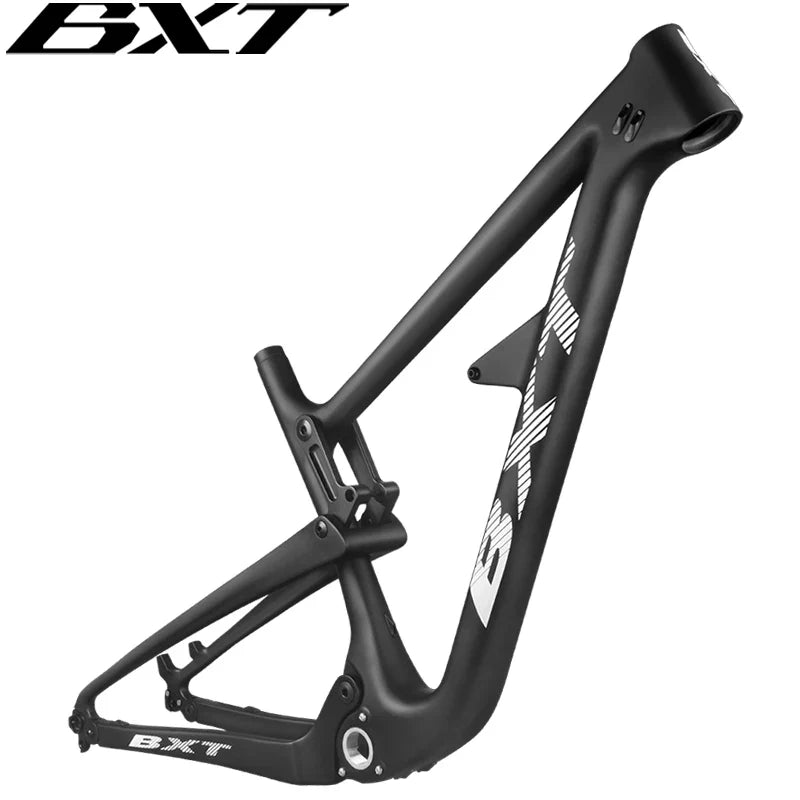

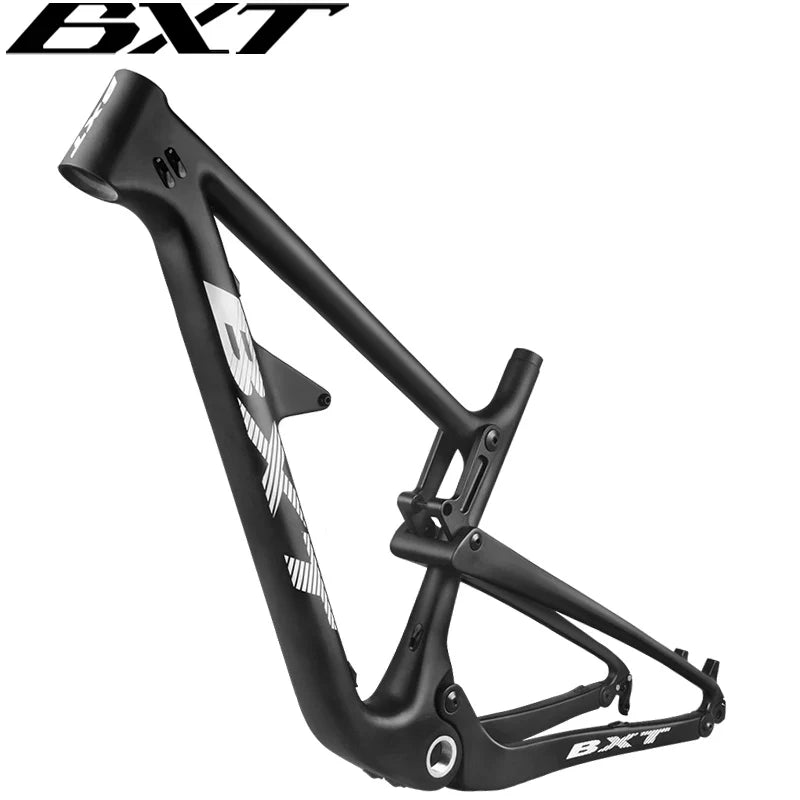

| Type | All Mountain Carbon Frame 29er | Material | Carbon Fiber |
| Frame Travel |
150mm
|
Fit for Rear Shock | Length 200mm,Bushing 22mm |
| Fit for Seat Post |
31.6mm
|
Fit for Seat Clamp | 34.9mm |
| Max load | 250Kg |
Fit for Disc Brake
|
160mm |
|
Fit For Bottom Bracket
|
Screw-in BSA(73mm) | Rear Spacing Specification | 135x9 and 142x12 or Boost 148x12mm |
| Fit for Headset | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) | Fit for Tire | 29er.Max 2.25Tire(BOOST Frame Max 2.35Tire) |
| Brake,Derailleur Cable | Frame Internal | Order Contains | Frame+Thru Axle Quick+Seat Clamp+Rear Hook |
